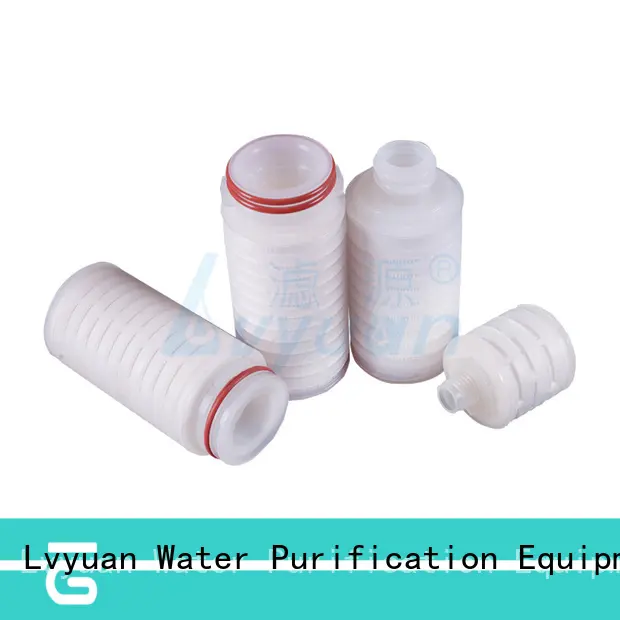

ptfe pleated type filter manufacturer for diagnostics
- Lvyuan Water Purification Equipment makes effort to provide quality and considerate services to meet the needs of customers.
1. Lvyuan is outstanding by its unique design.
2. The product is valued for their features like durability, long-lasting functionality, and long service life.
3. Our adherence to rigorous industry standards for quality fully guarantees that the product is of the premium quality.
4. The efforts have contributed to the success of Lvyuan's expansion of the market.
The PES pleated filter cartridge is constructed of imported polyethersulfone(PES) membrane media and non-woven support materials.The material of cage core and end caps is polypropylene. Absolute precision polyethersulfone membrane (PES) filter cartridges, adapters are thermally welded with media without using any glue, not any pollution.
The PES filter cartridge is ideal for critical prefiltration to sterilise applications and final filtration in a broad range of demanding non-sterile application. The inherently hydrophilic membrane contains no surfactant or wetting agents, which leads to effective filtration and flow rates
Due to its wide range of PH values and lower adsorption to protein than nylon membrane, it has become the preferred filter cartridge for final filtration in pharmaceutical, food and chemical industries.
Product Feature
◪ The product offers excellent retention efficiency and extended on-stream life making it an ideal filter for the clarification of beer, wine and bottled water.
◪ Excellent performance of chemical compatibility.
◪ High temperature resistance, Acid & Alkali resistance.
◪ Hydrophilic membrane with high flow.
◪ Non-fiber releasing, it meets the high standard pharmaceutics & food industry requirements.
◪ PES pleated cartridge filters are integrity tested during production to assure performance and consistency.
Product Parameter

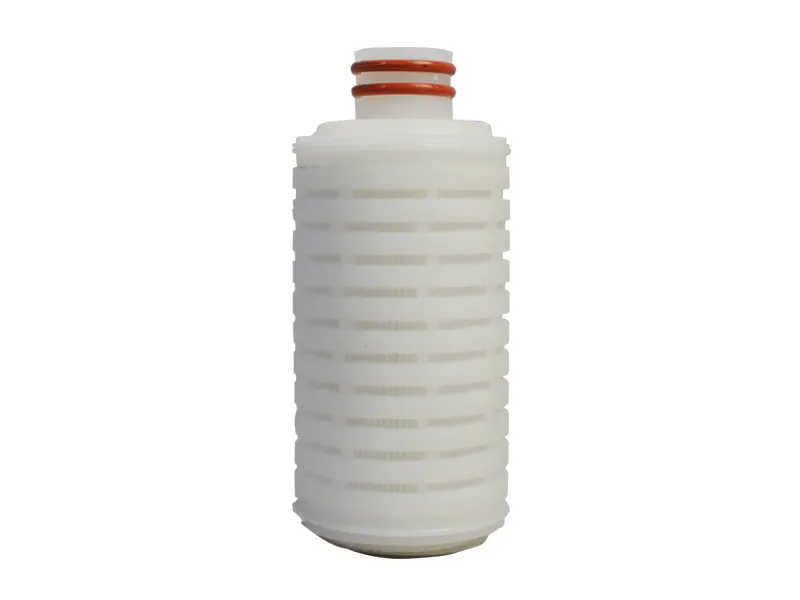

| Product Name | 0.2 μm PES membrane pleated cartridge filter 5 inch |
| Filter media | PES(Polyethersulfone) |
| Support | PP/Polypropylene |
| Core/End cap | PP/Polypropylene |
| Seal material | Silicone/EPDM/VITON/PTFE/NBR/TEFLON |
| Outer diameter | 2.7'' (69mm) |
| Length | 5'', 9.75'', 10'', 20'', 30'', 40'', Customized |
| End cap | 215/222/226/FIN/DOE/SS |
| Filtration area | ≥0.6m² |
| Max.operating temperature | ≤140℃, 0.28Mpa |
| Micron rating(μm) | 0.1, 0.2, 0.45, 0.65 |

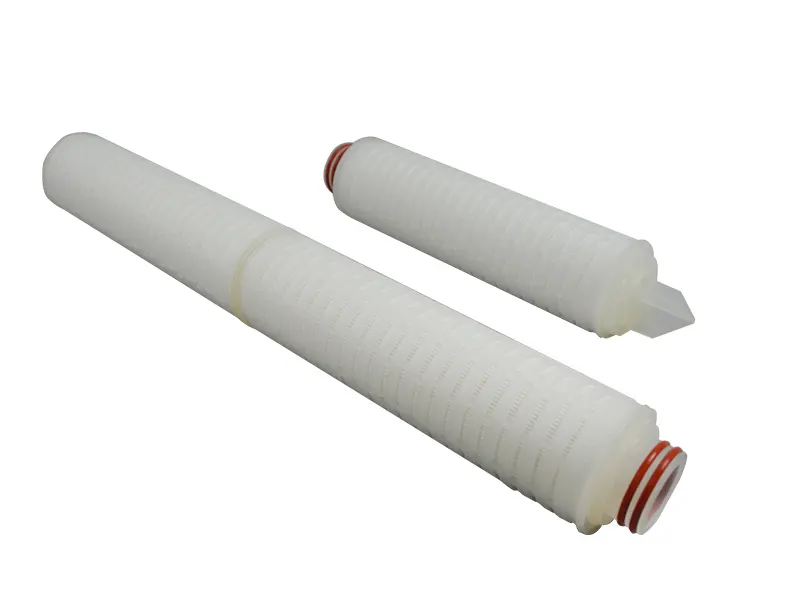

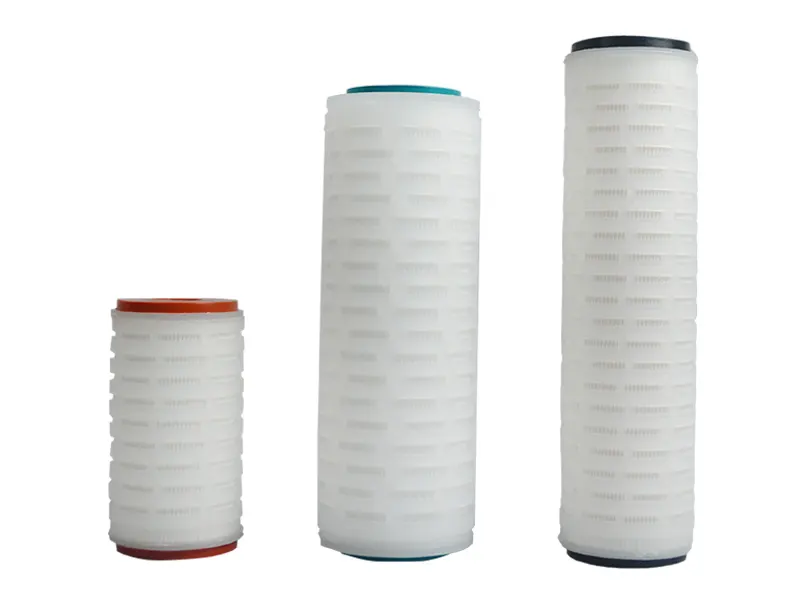

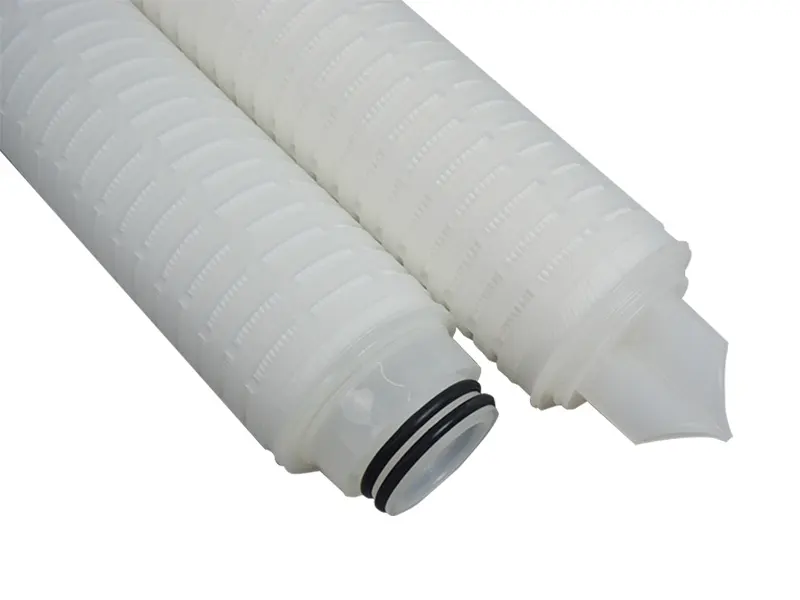

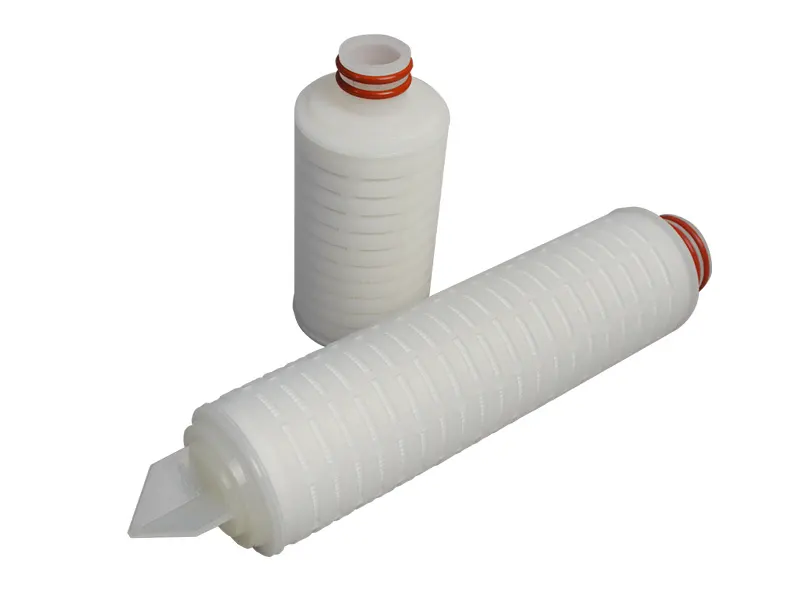

Product Details

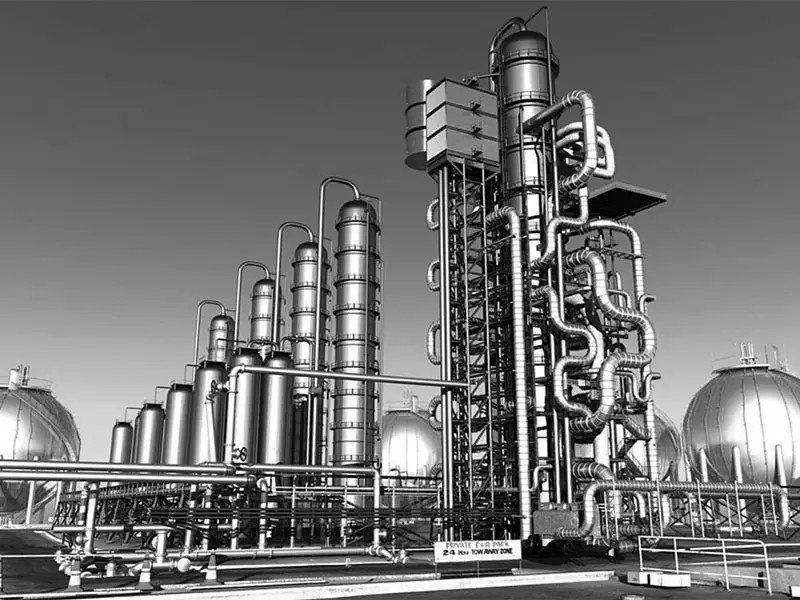

Product Applications
Medicine
Company Features
1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. deals in pleated filter manufacturers of fine quality at preferential prices.
2. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has achieved intensive development according to the technological innovation and industrial upgrading.
3. Lvyuan has always been following the principle of quality first and customer foremost. Inquire now! To promote our better cooperation, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is willing to do more for our customers. Inquire now! Lvyuan makes decisions to achieve to be a nationally professional pleated water filter cartridge supplier. Inquire now!
