    Overview
    Quick Details
    Place of Origin:
    Guangdong, China
    Brand Name:
    Lvyuan / OEM
    Product name:
    SS304 single bag filter housing
    housing material:
    ss304, ss316L
    bag filters quantity:
    Single or multi bags customized
    Bag size:
    180*450mm or 180*810mm, other
    Inlet & Outlet type:
    Flange / thread connection
    Filter bag Material:
    PP, PE, customized
    Max. working pressure:
    100/150/300 Psi
    Usage:
    liquid filtration
    Package:
    Wooden case
    housing clousure by:
    quick bolt, clamp, flange
    After-sales Service Provided:
    Engineers available to service machinery overseas
    Supply Ability
    Supply Ability:
    500 Piece/Pieces per Week single bag filter housing
    Product Description
    Quick Bolt SS304 Stainless Steel #4 single Bag Filter housing for Liquid pre-filtration 7
    Quick Bolt SS304 Stainless Steel #4 single Bag Filter housing for Liquid pre-filtration 9
    Quick Bolt SS304 Stainless Steel #4 single Bag Filter housing for Liquid pre-filtration 11

                                   Quick Bolt SS304 Stainless Steel #4 single Bag Filter housing for Liquid pre-filtration

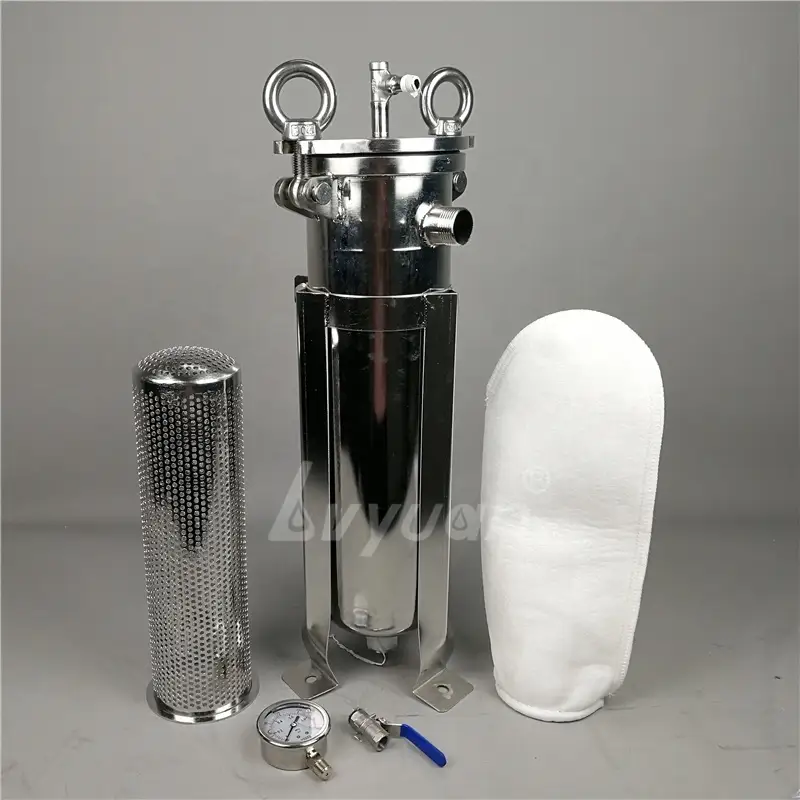

    Bag filter is often characteristic of high flow rate and long service life. Bag filter is a widely used for liquid filtration, it can remove the particles of different size from liquid, in order to achieve liquid filtration, purification, separation, recovery purposes. It consists of three parts: bag housing, supporting basket and filter bags. According to flow rate, you may use multiple bags in a bag housing. First, the liquid enter into the housing from the inlet, which may placed in the side or on the top, and then flow into the filter bag which is braced by basket. Due to the impact pressure of fluid, the bag will extend and the liquid get evenly filtered through the bag and flow out of the outlet pipe. Impurities are trapped in the bag, the filtration process is complete.


    Stainless steel bag filter housing Feature:
    1. material: SS304, SS316L
    2. stainless steel multi bag housing, the bag quantity can be customized from 1 to 18.
    3. inlet and outlet port is flange connection.
    4. Polished or sandblast external surface.


    Stainless steel bag filter housing Application:

    It's widely used in painting and dyeing, textile industry, beer, vegetable oil, pharmaceutical, Chinese herbal medicine, cosmetics, chemicals, petroleum products, chemicals, electroplating liquid, milk, mineral water, hot solvents, latex, industrial water, coatings and paints, sugar, molasses, resins, inks, industrial waste water, fruit juice, edible oil, waxes and other industries precision filtration, and more.


    Quick Bolt SS304 Stainless Steel #4 single Bag Filter housing for Liquid pre-filtration 13
    Quick Bolt SS304 Stainless Steel #4 single Bag Filter housing for Liquid pre-filtration 15
    Filter Bags
    Stainless Steel baskets
    Filter Bag Specs
    Bag type / Bag Number
    Flow Rate (m3/H)
    Filtration area (m2)
    Filter bag Size
    (DiameterxLength)
    #1
    20
    0.25
    7''x16'' (180mmx410mm)
    #2
    40
    0.50
    7''x32'' (180mmx810mm)
    #3
    6
    0.10
    4''x8.25'' (102mmx210mm)
    #4
    12
    0.15
    4''x14'' (102mmx356mm)
    #5
    25
    0.30
    6 7/8''x34'' (175mmx870mm)
    Bag Filter housings

    Single Bag filter housing Series, including Model BFL, BFH and BFC.

    Quick Bolt SS304 Stainless Steel #4 single Bag Filter housing for Liquid pre-filtration 17
    Quick Bolt SS304 Stainless Steel #4 single Bag Filter housing for Liquid pre-filtration 19
    Quick Bolt SS304 Stainless Steel #4 single Bag Filter housing for Liquid pre-filtration 21

    Multi bags filter housing, Model BFM multi-bag filter housing series:

    Quick Bolt SS304 Stainless Steel #4 single Bag Filter housing for Liquid pre-filtration 23
