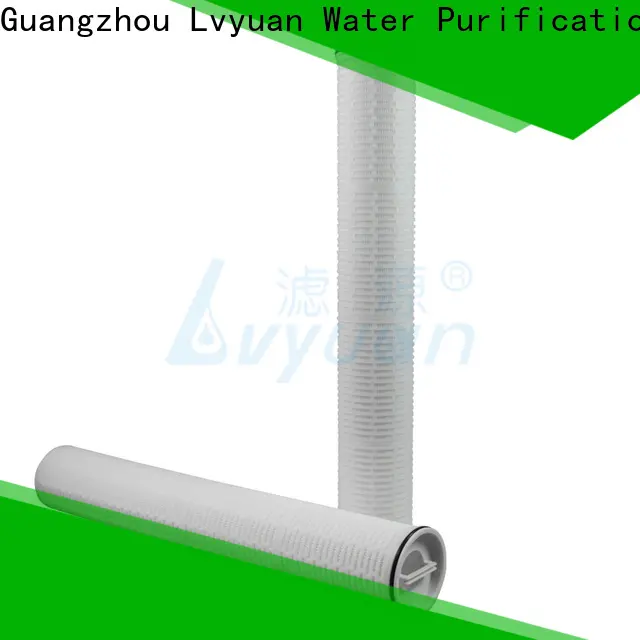

safe high flow water filter replacement for sea water desalination1
1. This versatile Lvyuan high flow water filter is made from environmentally friendly materials. It is manufactured from 100% Polypropylene construction
2. Having this product definitely speeds up the production time since no thinking is needed by it, there are better repeatability and less human error. The graded gradient design helps it to avoid rapid clogging
3. It has good strength. The whole unit and its components have the proper sizes which are determined by the stresses so that failure or deformation does not occur. It has increased dirt holding capacity and longer life
Product Feature
◪ All contaminants can be removed within the cartridges because of the flow direction.
◪ Up to 110m³/h flow rate per one filter cartridge for water filtration.
◪ Max. 50% reduction of the filter system.
◪ Multi membrane layers for large dirt holding in the high flow filter elements.
◪ Thermally bonded construction for stronger pressure resistance.
◪ Handle design quick installation, safety and reduce the cost.
Product Parameter
| Product Name | Repalcement High flow water filter cartridge 60 inch (LY-HFPL) |
| Filter media | PP/Polypropylene membrane |
| Support | PP/Polypropylene |
| Core/End cap | PP/Polypropylene |
| Seal material | Silicone/EPDM/VITON/PTFE/NBR |
| Outer diameter | 6”(152mm) |
| Inner diameter | 3.5 inch(89mm) |
| Length | 20”, 40”, 60”, Customized |
| Max.operating temperature | 82℃ |
| Micron rating(μm) | 1, 4, 5, 10, 15, 20, 40, 70, 100 |
Product Details
★ Graded filtration pore sizes in one high flow element.
★ Easier and more convinient installation and replaced.
★ Pleated with optimized membrane structure, better filtration and efficiency.
★ U-shaped sealing groove ensures high filtration efficiency.
★ From filter inside to outside filtration, all impurities are trapped inside the filter.
Product Applications
Municipal tap water, Prefiltration of RO, Pre treatment of sea water desalination
Company Features
1. The big development of Guangzhou Lvyuan Water Purification Equipment Co., Ltd. makes it at the forefront in the field of high flow water filter . We have a large number of professional and technical personnel specialized in high flow water filter cartridge .
2. Lvyuan introduced key technologies to produce high flow filter .
3. Investment in scientific research and development is critical to the development of Lvyuan. With our ability to manufacture high flow filters , we can help. Get info!
