Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.

Safe pleated sediment filter exporter for water purification 1

Safe pleated sediment filter exporter for water purification 2

Safe pleated sediment filter exporter for water purification 3

Safe pleated sediment filter exporter for water purification 4

Safe pleated sediment filter exporter for water purification 5

Safe pleated sediment filter exporter for water purification 6

Safe pleated sediment filter exporter for water purification 7

Safe pleated sediment filter exporter for water purification 8

Safe pleated sediment filter exporter for water purification 9

Safe pleated sediment filter exporter for water purification 10

Safe pleated sediment filter exporter for water purification

Inquiry

Overview

Quick Details

Condition:: New

Applicable Industries:: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

After Warranty Service:: Online support

Local Service Location:: none

Showroom Location:: none

Video outgoing-inspection:: Provided

Machinery Test Report:: Not Available

Marketing Type:: Ordinary Product

Warranty of core components:: Not Available

Place of Origin:: Guangdong, China

Brand Name:: Lvyuan / OEM

Material:: Pleated Filter Element

Weight:: depends

Size:: standard, customization

Power:: 0

Warranty:: Unavailable

Product name:: milli-pore air filters

Micron Rate:: 0.1, 0.5, 1, 5, 10 ~60um

Pleated cartridge Material:: PP/PTFE/PES /Nylon 6 /PVDF

Length:: 5", 10", 20", 30", 40" , OEM

Filter Media:: Polypropylene membrane

End Cap:: DOE,222+Fin,222+Flat,226+Fin,226+Flat

Gasket/O ring material:: Silicon/EPDM/NBR/Viton/ptfe

Usage:: liquid filter elements, water filter parts

Inner core:: PP / stainless steel

Certification:: SGS/ISO9001

Core Components:: cartridge filter element

Packaging & Delivery

Selling Units:: Single item

Single package size:: 15X15X103 cm

Single gross weight:: 2.000 kg

Package Type:: Millipore filter 0.22 micron PP PTFE membrane cartridge air filters with DOE/222/226/215 configuration Best unit price and shipping cost are subject to quantity changes, please feel free to send inquiry for the best quotation. Package 10 inch: 50PCS/CTN 400*400*685mm 20 inch: 25PCS/CTN 400*400*685mm 30 inch: 25PCS/CTN 835*435*425mm 40 inch: 25PCS/CTN 1100*395*400mm

Lead Time :

Quantity(Pieces)	1 - 100	>100
Est. Time(days)	15	To be negotiated

Product Description

Safe pleated sediment filter exporter for water purification 11

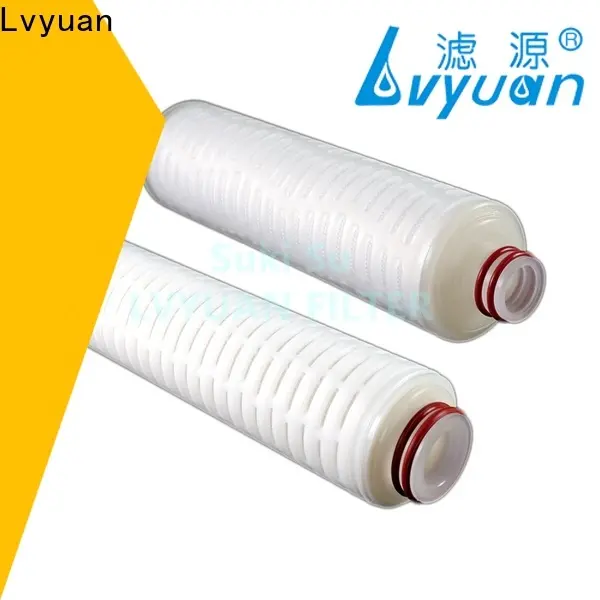

Millipore filter 0.22 micron PP PTFE membrane cartridge air filters with DOE/222/226/215 configuration

Pleated membrane cartridge filters from Guangzhou Lvyuan Filter offer the ultimate in product safety and purity for absolute filtration with pore sizes from 0.05 to 100 micron (depending on the media). Available in membranes Polypropylene, PTFE, Polyethersulfone (PES), Nylon 66 and PVDF, Fiber Glass, Polyester for maximal chemical compatibility. We supply a wide selection of micron sizes and end cap configurations to choose from. Lvyuan pleated membrane filter cartridge are widely used for high purity, pre-filtration and final filtration applications.

Safe pleated sediment filter exporter for water purification 13

PP Pleated Filter Cartridge

The filtration media of PP micropore filter cartridge is super fine PP (Polypropylene) fibre membrane. It is a fixed and depth filter cartridge with a wide range of pore size from 0.1 micron to 50 micron, the materials comply with FDA related requirements. It is the first choice of pre-filtration due to its unique low differential pressure, high flow rate and long service life features. The structure of PP has stable performance and wide chemical compatibility.

Safe pleated sediment filter exporter for water purification 15

Glass Fiber Pleated Filter Cartridge

The absolute fiber glass pleated membrane cartridge has high efficiency of solid removal. The pleated filter cartridges provides long lifetime service because of its large filter area and depth filtration. Fiber glass filters are suitable to work in high temperature oily water, acid, solvents and diesel fuels. So it's widely used in oil and mine exploitation, chemical and process water treatment.

Safe pleated sediment filter exporter for water purification 17

PTFE Pleated Filter Cartridge

Hydrophobic PTFE series pleated filter cartridge is constructed of hydrophobic PTFE membrane which has excellent chemical compatibility and corrosion resistance. This filter cartridge is suitable for the filtration to liquid and gas with strongly aggressive and oxidative.

Hydrophilic PTFE series pleated filter cartridge is contructed of hydrophilic PTFE membrane which has excellent chemical compatibility and corrosion resistance. The membrane is hydrophilic which can filter liquid directly without pre-wetting to save the operation time.

Safe pleated sediment filter exporter for water purification 19

PES Pleated Filter Cartridge

The filtration media of PES micropore filter cartridge is hydrophilic PES (polyethersulfone) membrane. High porosity (about >=80%) and geometrically unique pores of the PES filter cartridge contribute to high outputs for difficult-to-filter solutions. It is contructed of 2 materials PES and PP to meet high standard of chemical and pharmaceutical industry. All filter cartridges are manufactured and assembled in a clean room environment. 100% of the cartridges are integrity tested and flushed with EDI pure water. It is suitable for filtering weak acid/alkali based liquid and ultra pure water.

Safe pleated sediment filter exporter for water purification 21

Nylon Pleated Filter Cartridge

The filtration media of nylon micrpore filter cartridge is constructed of nylon 6 or nylon 66 media and nonwoven support materials. The adaptors are thermally welded without any glue or adhesive to prevent any possibility of pollution. The filters are produced in clean room and 100% integrity tested and flushed with ultrapure water.

Specification

Filter Media Option	PP	PES	PTFE	Nylon 6/66	PVDF
Length	2.5'', 5, 10, 20, 30, 40 inch	2.5'', 5, 10, 20, 30, 40 inch	2.5'', 5, 10, 20, 30, 40 inch	2.5'', 5, 10, 20, 30, 40 inch	2.5'', 5, 10, 20, 30, 40 inch
Micron Rate	0.1, 0.2, 0.45, 0.65, 0.8, 1, 2, 3, 5, 10, 20, 25, 30, 50, 60 micron	0.1, 0.2, 0.45, 0.65 micron	0.2, 0.45 micron	0.2, 0.45, 0.65, 1 micron	0.2, 0.45 micron
End Cap	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
Inner Diameter	28mm	28mm	28mm	28mm	28mm
Outer Diameter	69mm (can be customized)	69mm (can be customized)	69mm (can be customized)	69mm (can be customized)	69mm (can be customized)
Gasket/O ring material	Silicon/EPDM/NBR/Viton/Teflon	Silicon/EPDM/NBR/Viton/Teflon	Silicon/EPDM/NBR/Viton/Teflon	Silicon/EPDM/NBR/Viton/Teflon	Silicon/EPDM/NBR/Viton/Teflon
Effective filtration area	0.4-0.7m²	≥5m²	≥0.72m²	≥0.6m²	≥0.72m²
Max.working pressure difference	0.42Mpa at 25ºC	0.42Mpa at 25ºC	0.42Mpa at 25ºC	0.42Mpa at 25ºC	0.42Mpa at 25ºC
Max.back pressure	0.28Mpa at 60ºC	0.21Mpa at 25ºC	0.35Mpa at 60ºC	0.35Mpa at 25ºC	0.21Mpa at 25ºC
Max. working temperature	88ºC at 0.28Mpa, 60ºC at 0.42Mpa	140ºC at 0.28Mpa	142ºC at 0.276Mpa	49ºC at 0.21Mpa	80ºC at 0.173Mpa
Sterilizing temperature	121℃, 30mins	121℃, 30mins	121℃, 30mins	121℃, 30mins	121℃, 30mins

Application

Safe pleated sediment filter exporter for water purification 23

1. Electronic industry: RO reverse osmosis water system prefiltration, deionized water system prefiltration.
2. Food industry: filtration of beverage, beer and mineral water.
3. Chemical industry: filtration of organic solvent and ink.
4. Pharmaceutical industry: filtration of pharmaceuticals, biologicals, serum products, compressed air and gas.
5. Others: filtration of plating solution, process fluids, photoresist and magnetic media

End Caps
