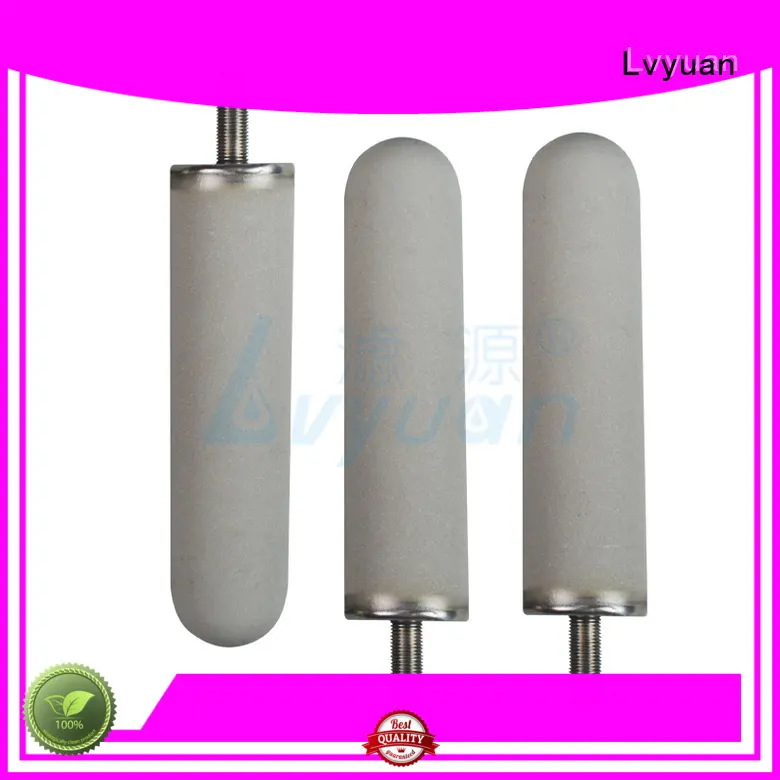

sintered stainless steel filter elements for sea water desalination Lvyuan
- Lvyuan Water Purification Equipment has always been providing advanced technology and sound after-sales service for customers.
1. The special composition of sintered plastic filter makes it obtain good performance of sintered stainless steel filter elements .
2. The product is an essential tool for hazardous materials. Its excellent leakage resistance can prevent the escape of toxic fumes to the surroundings.
3. The product is environmentally friendly. The used materials are recyclable and the refrigerant does not have a destructive influence on the ozone layer.
4. According to feedback, the product has achieved high customer satisfaction.
Product Feature
◪ Uniform structure, narrow pore size distribution, and high separation efficiency.
◪ High porosity, the resistance of filtration less, and the penetration efficiency is high.
◪ High temperature resistant, it can be normally used below in 280 degree.
◪ Good chemical stability, acid & alkali corrosion resistance, and oxidation resistance.
◪ Good mechanical performance, it can have the suction filtration and press-filtration, simple operation.
◪ Low differential pressure, the area of cover is small, and large water flow rate;od mechanical performance, it can have the suction filtration and press-filtration, simple operation.
◪ Strong antimicrobial ability, no microbes.
◪ The finished-products technology is good, the overlength of overall length can be reached to 1000mm.
◪ It can be on-line regeneration, easy to clean, and long service life.
◪ No particles fall off, it will not make the concentrate form secondary pollution, it conforms to be food hygiene and pharmaceutical GMP requirements.
Product Parameter
| Fiter Cartridge dimensions | |
| Length | 5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm） |
| Diameter | Ø22, 30, 50, 60, 70, 80, 100, 120mm |
| Other dimensions | Customized by customer’s request. |
| Material of constructions | |
| Filter media | Titanium |
| Connector type | Flat, Insert type, Thread type, Fin |

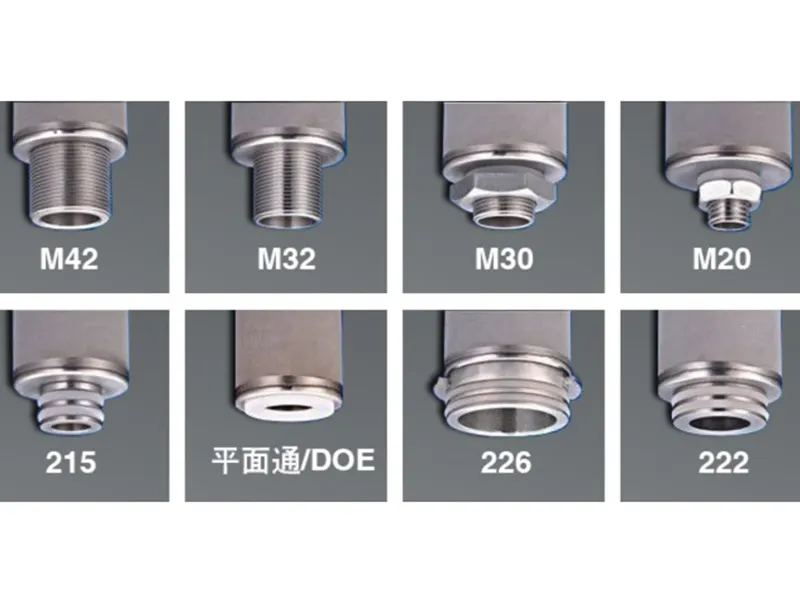

| End caps | DOE, 215, 222, 226, M20, M30, M42 or as request. |
| Sealing material | Silicone, NBR, EPDM, Fluoro rubber, etc |
| Performance | |
| Removal rate | 0.1, 0.45, 1, 3, 5, 10,20, 30, 40, 50, 100um |
| Porosity | 28-50% |
| Temperature Tolerance | ≦ 300℃ wet |
| Permeability | 0.02-20L/cm2 min Pa |
| Maximum Operating Pressure differential | 6.0 bar |
| Flow rate (L/H) | 180, 200, 250, 280, 300, 350, 500, 800, 1000, 1500, 1600 |
◆◆Pure water flow rate reference table: the initial value of 10'' sintered titanium cartridge (P=0.2 MPa, 1cP, 25℃)
| Micron rate (μm) | 0.2 | 0.45 | 1 | 2 | 3 | 5 | 10 | 20 | 30 |
| Flow rate (L/H) | 180 | 200 | 250 | 280 | 300 | 350 | 500 | 800 | 1000 |

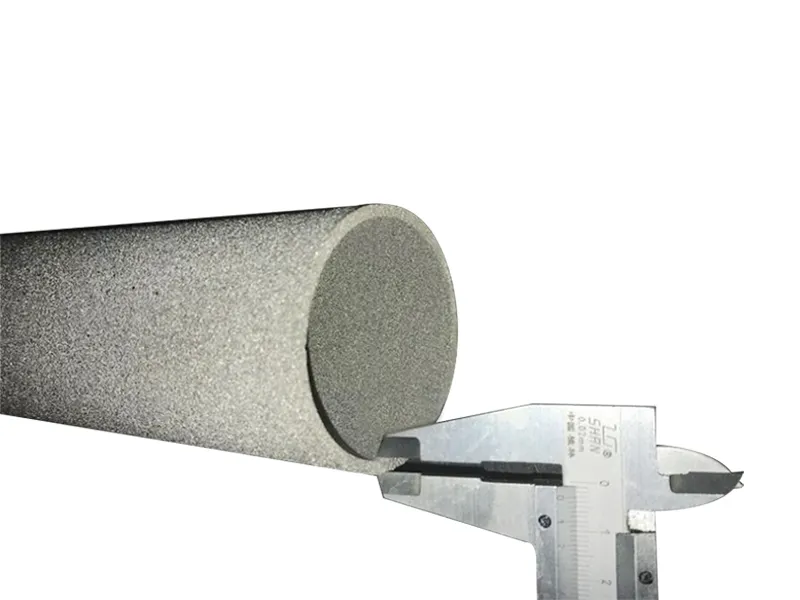

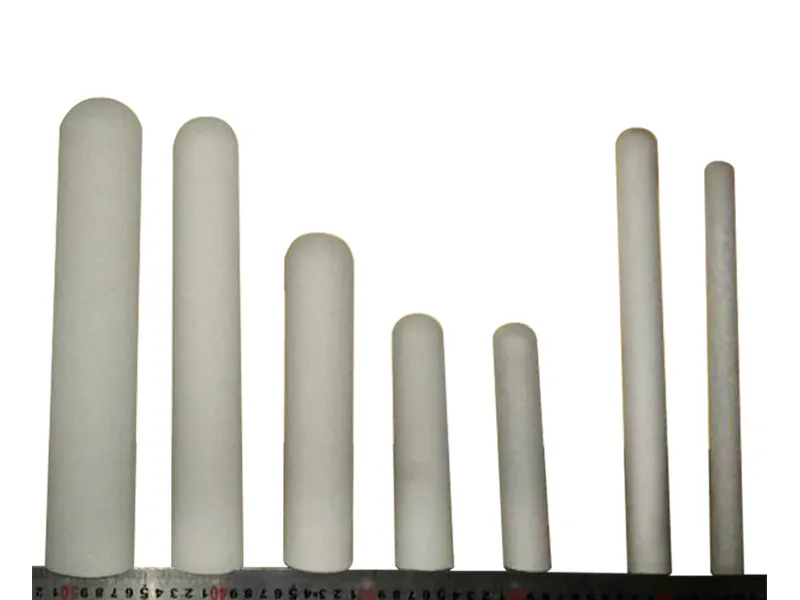

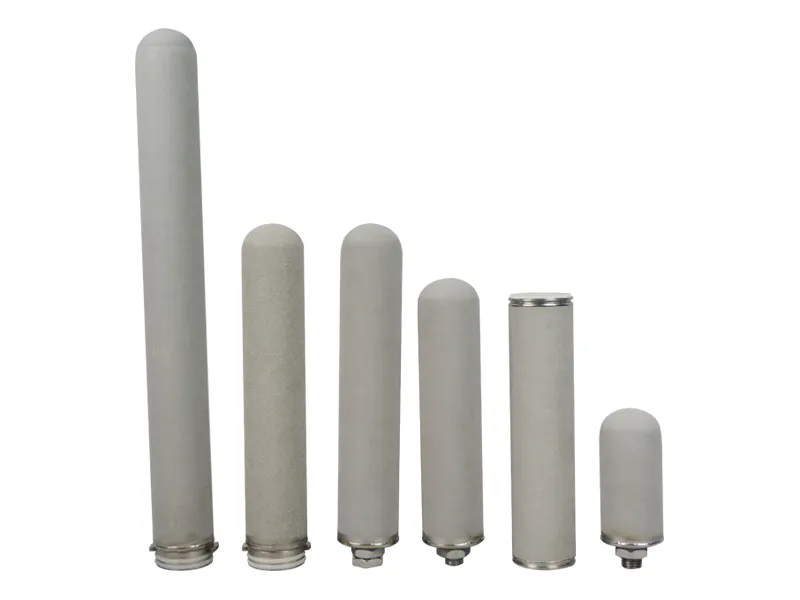

Product Details

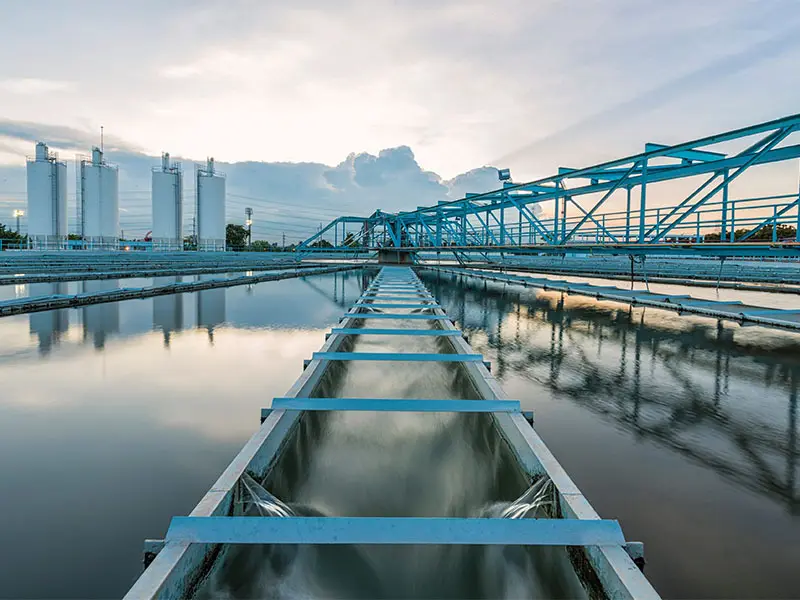

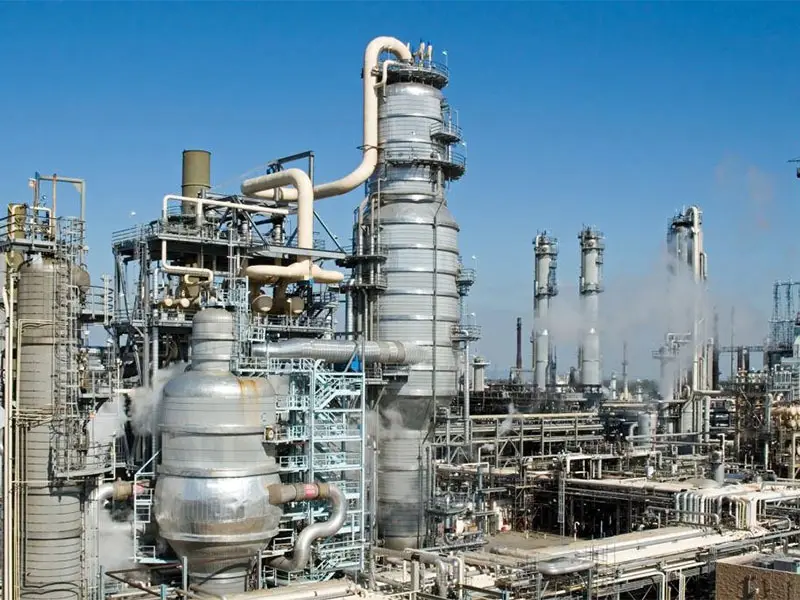

Product Applications
Company Features
1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is a well-established enterprise that specializes in the manufacturing of sintered stainless steel filter elements . We have been focusing on providing high quality products for our customers.
2. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has highly qualified engineers and technicians, professional sales personnel and skilled workers.
3. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is committed to improving the positioning and fairness of Lvyuan. Check it! Our mission is simple. We serve the public good through innovative technologies and partnerships; We deliver on our business responsibilities of growth and value to our customers. Check it! Customers are the key factor in our success, hence, in order to achieve better customer service, we are creating a new customer service process. This process will make the service process more exceptional and effective in handling customers' requirements and complaints.
