Small Stainless Steel Bag filter housing for river rain water sand removal

    oops...!

    no product data.

    Go to homepage
    Overview
    Quick Details
    Place of Origin:
    Guangdong, China
    Brand Name:
    Lvyuan / OEM
    Warranty:
    Unavailable
    After-sales Service Provided:
    Online support
    Product name:
    bag filter
    housing material:
    ss304, sus 316, ss316L
    bag filters quantity:
    Single or multi bags customized
    Bag size:
    180*450mm or 180*810mm, other
    Inlet & Outlet type:
    Flange/thread connection
    Filter bag Material:
    PP, PE, customized
    Max. working pressure:
    100/150/300 Psi
    Usage:
    liquid filtration
    Bag number:
    #1, 2, 3, 4, 5, OEM
    housing clousure by:
    quick bolt, clamp, flange
    Supply Ability
    Supply Ability:
    1500 Piece/Pieces per Month sand removal filter
    Product Description
    Small Stainless Steel Bag filter housing for river rain water sand removal 7

    Small Stainless Steel Bag filter housing for river rain water sand removal

    Bag filter is often characteristic of high flow rate and long service life. Bag filter is a widely used for liquid filtration, it can remove the particles of different size from liquid, in order to achieve liquid filtration, purification, separation, recovery purposes. It consists of three parts: bag housing, supporting basket and filter bags. According to flow rate, you may use multiple bags in a bag housing. First, the liquid enter into the housing from the inlet, which may placed in the side or on the top, and then flow into the filter bag which is braced by basket. Due to the impact pressure of fluid, the bag will extend and the liquid get evenly filtered through the bag and flow out of the outlet pipe. Impurities are trapped in the bag, the filtration process is complete.


    Stainless steel bag filter housing Applications:

    1. Automotive
    2. Food and Beverage
    3. Chemical Processing
    4. Paints, Inks, Resins and Coatings
    5. Electronics
    6. Petrochemicals
    7. Municipal Water Treatment
    8. Industrial Water Treatment
    9. Pulp and Paper
    10. Pharmaceutical
    11. Lubricants, Metalworking Fluids
    12. Solvents


    Stainless steel Single bag filter housing and multi-bags filter housing, customized wall mounted or trolley type pneumatic big filter system/equipment/machine are provided.

    Specifications
    Product name:
    Stainless Steel bag filter housing
    Material
    SUS304, SUS316, SUS316L
    Bag quantity
    single bag or multi-bag
    Bag number
    # 1, 2, 3, 4, 5 or OEM
    Quantity option
    1 to 18 bags
    Surface treatment
    Polished or sandblast external
    Seal O-ring
    silicon,NBR, EPDM, Viton, PTFE
    In&outlet connection
    V-clamp, thread or flange
    Bag Filtration rate
    0.5, 1 5, 10, 20, 50, 100, 200 to 500 micron
    Usage
    Liquid filtration
    Max working pressure
    100, 150, 300Psi, OEM
    Wall thickness
    1.5~5mm

    Filter Bag Material and Specification:

    Polyester Needle Felt (PET), Polypropylene Needle Felt (PPF), Polypropylene Plain (PPP), Nylon Monofilament (NMO), and many other materials..

    Small Stainless Steel Bag filter housing for river rain water sand removal 9
    Type
    Flow rate
    (m³/H)
    Filtration Area (㎡)
    Size
    (DiameterxLength)
    #1
    20
    0.25
    7''x16'' (180mmx410mm)
    #2
    40
    0.50
    7''x32'' (180mmx810mm)
    #3
    6
    0.10
    4''x8.25'' (102mmx210mm)
    #4
    12
    0.15
    4''x14'' (102mmx356mm)
    #5
    25
    0.30
    6 7/8''x34'' (175mmx870mm)
    Small Stainless Steel Bag filter housing for river rain water sand removal 11

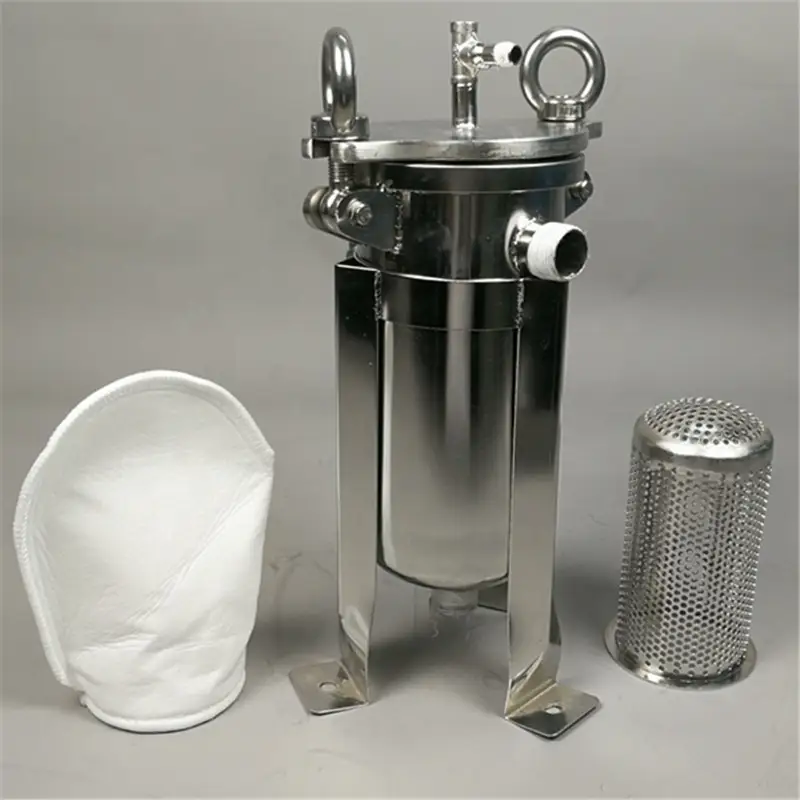

    Stainless Steel Bag Filter Housing with all accessories

    Bag Filter housings
    Small Stainless Steel Bag filter housing for river rain water sand removal 13
    Small Stainless Steel Bag filter housing for river rain water sand removal 15
    Small Stainless Steel Bag filter housing for river rain water sand removal 17

    BFH-01 V-clamp Closure Stainless steel single Bag Filter Housing

    BFH-02 Flange/bolt lifting type Stainless Steel Single Bag Filter Housing

    BFH-03 Flange/top install type Stainless steel Single Bag Filter Housing

    Small Stainless Steel Bag filter housing for river rain water sand removal 19
    Small Stainless Steel Bag filter housing for river rain water sand removal 21
    Small Stainless Steel Bag filter housing for river rain water sand removal 23

    BFH-04 Muti-bags Stainless Steel Bag Filter Housing

    Custom-made Small flow rate Stainless Steel single Bag Filter Housing

    Custom-made Stainless Steel Single Bag Filer Housing

    Small Stainless Steel Bag filter housing for river rain water sand removal 25

    Industrial pneumatic oil filtration system with bag filter equipment and mobile trolley

    Small Stainless Steel Bag filter housing for river rain water sand removal 27

    OEM Wall-mounted pneumatic stainless steel bag filter system

    Small Stainless Steel Bag filter housing for river rain water sand removal 29

    Custom-made Dual Bag Filter Housing with trolley, pneumatic system available for option.
    For more information, please feel free to contact us for the detail Catalog.

    Single Bag filter housing Series, including Model BFL, BFH and BFC.

    Small Stainless Steel Bag filter housing for river rain water sand removal 31
    Small Stainless Steel Bag filter housing for river rain water sand removal 33
    Small Stainless Steel Bag filter housing for river rain water sand removal 35

    Multi bags filter housing, Model BFM multi-bag filter housing series:

    Small Stainless Steel Bag filter housing for river rain water sand removal 37
    Our Company
    Small Stainless Steel Bag filter housing for river rain water sand removal 39
    Contact
    Small Stainless Steel Bag filter housing for river rain water sand removal 41
    The product is a cost-effective investment for manufacturers because it does not need frequent maintenance nor repair, which helps to cut costs. The inner support layer is closely connected to the filter material, making it of strong impact resistance. This product serves as a useful tool to increase productivity and efficiency. The use of this product can cut down operation times and workload. The inner support layer is closely connected to the filter material, making it of strong impact resistance.
