SS Sintered Filter Cartridge metal mesh filter Suppliers
- Lvyuan Water Purification Equipment gives priority to customers and strives to provide them with satisfactory services.
1. The raw materials of Lvyuan sintered metal filters suppliers is purchased by our procurement team who often interviews or visits suppliers, strictly verifying the performance of the raw materials.
2. The product has the advantage of overload protection. It has reliable cables that can carry momentary overloads for a very short time period.
3. It is highly safe to use. The product features built-in protection functions that can prevent any accidental issues, such as electric leakage.
4. This product is provided together with several customized options as per the demands of the clients.
5. The product offered by us is widely appreciated for its great features.
Stainless steel filter element can get a large filtration area and with high flow rate. It extends cartridge life and have more dirt holding capacity.
Moreover, The stainless steel filter cartridges are designed for cleanable and reusable applications thereby eliminating frequent cartridge change out, so it can significantly reduce disposal cost.
Non-standard Stainless steel filter cartridges can be easily customized with various dimension, end cap, outer cage pattern etc. So as long as customer give us the picture and drawing of the ss filter cartridge, we can custom-make the exact ss filter element to you.

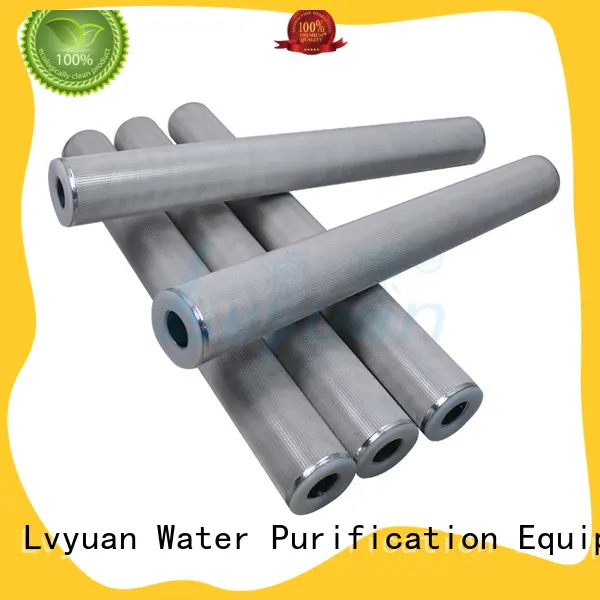

◆◆ Sintered Stainless Steel Filter Cartridges are the perfect choice for high temperature, high differential pressure and high viscosity applications. Manufactured with 304, 316 or 316L material, there’re mainly 3 types of stainless steel cartridge designs are widely used in the industry.
1. Plain cylindrical design SS wiremesh filter cartridge.
2. Pleated configuration design SS folded mesh filter cartridge.
3. Sintered SS316 metal powder type SS filter cartridge.
Product Feature
◪ Excellent mechanical strength.
◪ High dirt holding capacity.
◪ High pressure resistance, withstand capacity and low pressure drop.
◪ Temperature ratings from -73°C to 480°C.
◪ Various micron ratings available from 2um to 1000um nominal.
◪ Back flushing and cleanable for long service life.
◪ Strong corrosion resistant for wide chemical compatibility.
◪ High permeability, no media migration.
◪ Customized dimension are welcome.
Product Parameter
| Fiter Cartridge dimensions | |
| Length | 5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm) |
| Diameter | Ø25, 30, 50, 60, 65, 70mm |
| Other dimensions | Customized by customer’s request. |
| Material of constructions | |
| Filter media | SUS304, 316， 316L stainless steel |
| Connector type | Flat, Insert type, Thread type, Fin |
| End caps | DOE, SOE, 215, 222, 226, M20, M30, M42, 1’’ NPT/BSP or as request. |
| Outside protection net | Optional |
| Sealing material | Silicone, NBR, EPDM, Buna, Teflon, etc |
| Performance | |
| Removal rate | 1, 3, 5, 10,20, 30, 40, 50, 100um, etc |
| Effective Surface area | 0.65 sqm per 10" cartridge element |
| Operation Temperature | ≦ 480℃ |
| Cleaning method | back flushing, ultrasonic or other non-abrasive cleaning |
| Maximum Operating Pressure differential | 4.0 bar |
Product Details
Product Applications
Company Features
1. Mainly specialized in sintered metal filters suppliers , Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has achieved a big development over the years.
2. Lvyuan attaches great importance to the value of technical strength to the quality of sintered filter suppliers .
3. By leading the sintered plastic filter market now, Lvyuan will provide better and more professional service for customers. Inquire now! Pursuit of excellence both in service and sintered filter cartridge quality will be Lvyuan's unceasing goal. Inquire now! Many customers are satisfied with the professional service provided by Lvyuan. Inquire now!
