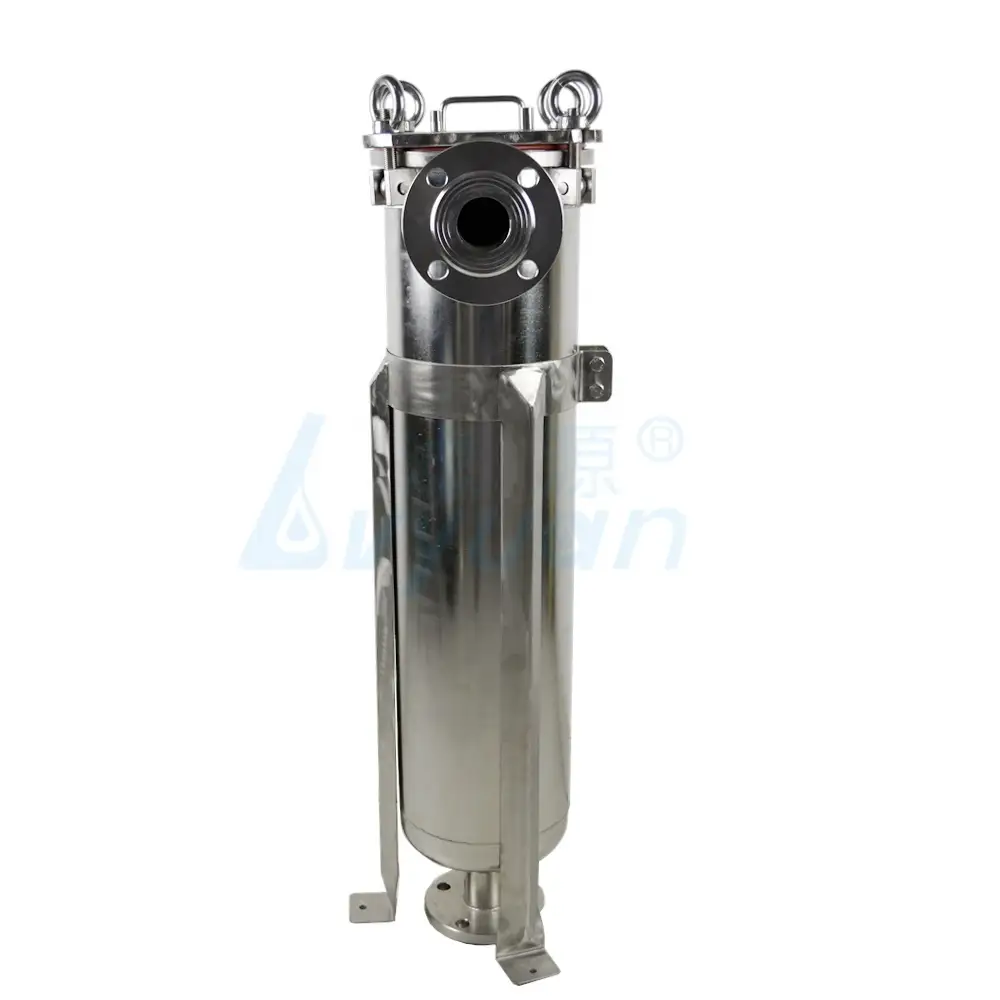

ss304 Stainless Steel Bag Filter Housing 150 Psi with single pp/ss/pe filter bag

    oops...!

    no product data.

    Go to homepage
    Overview
    Quick Details
    Applicable Industries:
    Manufacturing Plant, Food & Beverage Factory, water treatment
    Place of Origin:
    Guangdong, China
    Brand Name:
    Lvyuan,OEM,ODM
    Material:
    staniless steel 304/ss304
    Weight:
    30kg
    Size:
    380*380*1200mm
    Power:
    0
    Warranty:
    1 Year
    After-sales Service Provided:
    Online support
    Certification:
    ISO9001
    Model:
    BFH-2
    material:
    sus304
    filter bag size:
    180*810mm
    outer/inner:
    polished
    Working pressure:
    150Psi
    closure:
    Flange
    sealing:
    EPDM O-ring
    inlet/outlet:
    DN 50 Flange
    Design temperature:
    100℃

    Packaging & Delivery

    Selling Units:
    Single item
    Single package size:
    150X40X40 cm
    Single gross weight:
    35.000 kg
    Package Type:
    45*45*180cm/pcs
    Lead Time :
    Quantity(Pieces) 1 - 10 11 - 50 51 - 100 >100
    Est. Time(days) 15 20 30 To be negotiated
    Product Description
    ss304 Stainless Steel Bag Filter Housing 150 Psi with single pp/ss/pe filter bag 7

    Features:


    1. The bag filter has large flow rate capacity, small volume and dirt holding capacity.

    2. It is convenient and quick to replace the filter bag, and the filter is no-clean, saving labor and time.

    3. The side leakage rate of the filter bag is small, which greatly improves the filtration quality.

    4. The bag filter can withstand greater working pressure, low pressure loss, low operating cost and obvious energy saving effect.

    5. Filter bag filtration accuracy has been continuously improved and has reached 0.5um.

    6. The bag filter has a wide range of applications, flexible use and various installation methods. Widely used in environmental protection, chemical, metallurgical, pharmaceutical, food and other industries.

    Products Show

    LY-BFH Stainless Steel BAG Filter Housing standard Specification:

    ss304 Stainless Steel Bag Filter Housing 150 Psi with single pp/ss/pe filter bag 9
    Material
    SS304
    Bag material
     PP/PE/SS
    Finishing
    outer-polished or sand blast surface
    inner-polished
    Closure
    Flange
    Inlet/Outlet
    DN50 Flange
    Pressure
     Maximum 1 Mpa/150psi
    Continuous operating 0.5 Mpa/72.5psi
    Sealing
    EPDM O-ring
    Filter bag
    180*810mm

    Users can choose filter bags of different shapes, different apertures, different structures and different materials according to different filtering needs to obtain the most economical and effective filtering effect.

    ss304 Stainless Steel Bag Filter Housing 150 Psi with single pp/ss/pe filter bag 11
    ss304 Stainless Steel Bag Filter Housing 150 Psi with single pp/ss/pe filter bag 13
    Product list
    ss304 Stainless Steel Bag Filter Housing 150 Psi with single pp/ss/pe filter bag 15
    NO.
    Name
    Quantiy/
    Material
    1
    Leg 700x38x38x3.0
    3pcs/ss304
    2
    water outlet DN50 flange
    1pcs/ss304
    3
    Bottom head φ219x1.5
    1pcs/ss304
    4
    Basket φ170x720mm
    1pcs/ss304
    5
    Housing body φ219x1.5
    1pcs/ss304
    6
    Clamp for leg
    1pcs/ss304
    7
    Internal flange φ214xφ173x16
    1set/ss304
    8
    Plate
    1set/ss304
    9
    Flange Quick-bolt φ219x250x25
    1pcs/ss304
    10
    Quick-bolt M12
    6pcs/ss304
    11
    Vent 1/4" thread
    1pcs/ss304
    12
    Handle
    1pcs/ss304
    13
    Top cover plate φ312x12.0
    1pcs/ss304
    14
    O-ring
    1pcs/EPDM
    15
    Quick-bolt under flame
    12pcs/s304
    16
    Water inlet DN50 Flange
    1pcs/ss304
    Related Products
    ss304 Stainless Steel Bag Filter Housing 150 Psi with single pp/ss/pe filter bag 17
    ss304 Stainless Steel Bag Filter Housing 150 Psi with single pp/ss/pe filter bag 19
    ss304 Stainless Steel Bag Filter Housing 150 Psi with single pp/ss/pe filter bag 21

                        Water bag filter                                   Clamp type  bag filter                             top-into  bag filter

    ss304 Stainless Steel Bag Filter Housing 150 Psi with single pp/ss/pe filter bag 23
    ss304 Stainless Steel Bag Filter Housing 150 Psi with single pp/ss/pe filter bag 25
    ss304 Stainless Steel Bag Filter Housing 150 Psi with single pp/ss/pe filter bag 27
    ss304 Stainless Steel Bag Filter Housing 150 Psi with single pp/ss/pe filter bag 29

    sanitary filter housing                clamp type filter housing       single cartridge filter housing             cartridge filter housing

    ss304 Stainless Steel Bag Filter Housing 150 Psi with single pp/ss/pe filter bag 31
    Our Certifications
    ss304 Stainless Steel Bag Filter Housing 150 Psi with single pp/ss/pe filter bag 33
    FAQ

    1. How I choose the bag filter housing size?

      We can recommand one for you. As you tell us what kind of fluid you want to filter, including flow rate, operating pressure, temperature, acid value etc.

    2. How about the lead time?

    Usually, within 10 working days. if you have request, could you pl tell us your delivery day, we will check the production schedule, and give you exact answer. If we can reduce the lead time, we will try our best.

    3. Can we order small quantity?

    Yes, we can accept samples purchase and we hope built long term relationship with you.
    Contact us

    Mobil/WeChat/Skype/WhatsApp:+86 13574135485

    Guangzhou Lvyuan water Purification Equipment CO., Ltd.

    Website: www.lyfilter.com

    Address:No.4,shijiaoju street,Xinzao Town, PanYu Dist. Guangzhou,Guangdong,China

    Tel: +86-20-34460508

    Fax:+86-2034425655

    please fee free to contact us, send inquiry now!!
