Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.
titanium ss sintered filter supplier for industry
-
v s
1. Lvyuan ss sintered filter must go through a series of tests. They include testing for the compliance with the machinery directive, testing for operation safety, and testing for its life expectancy.
2. Adopting the latest technology guarantees the great performance of ss sintered filter.
3. The product outperforms other products well in the industry due to rising market achievements.
4. The product is suitable for various kinds of applications.
Stainless steel filter element can get a large filtration area and with high flow rate. It extends cartridge life and have more dirt holding capacity.
Moreover, The stainless steel filter cartridges are designed for cleanable and reusable applications thereby eliminating frequent cartridge change out, so it can significantly reduce disposal cost.
Non-standard Stainless steel filter cartridges can be easily customized with various dimension, end cap, outer cage pattern etc. So as long as customer give us the picture and drawing of the ss filter cartridge, we can custom-make the exact ss filter element to you.

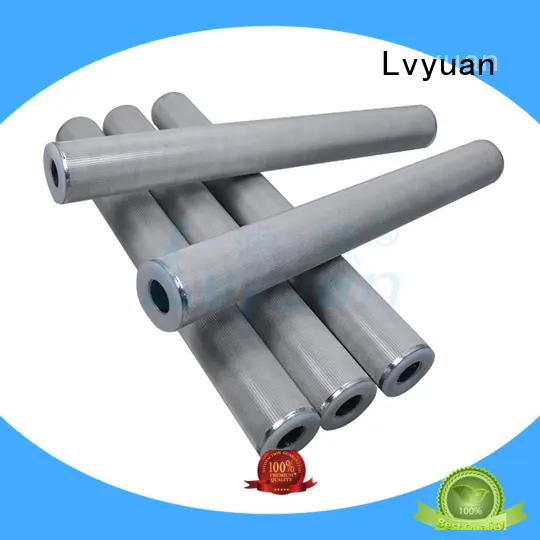

◆◆ Sintered Stainless Steel Filter Cartridges are the perfect choice for high temperature, high differential pressure and high viscosity applications. Manufactured with 304, 316 or 316L material, there’re mainly 3 types of stainless steel cartridge designs are widely used in the industry.
1. Plain cylindrical design SS wiremesh filter cartridge.
2. Pleated configuration design SS folded mesh filter cartridge.
3. Sintered SS316 metal powder type SS filter cartridge.
Product Feature
◪ Excellent mechanical strength.
◪ High dirt holding capacity.
◪ High pressure resistance, withstand capacity and low pressure drop.
◪ Temperature ratings from -73°C to 480°C.
◪ Various micron ratings available from 2um to 1000um nominal.
◪ Back flushing and cleanable for long service life.
◪ Strong corrosion resistant for wide chemical compatibility.
◪ High permeability, no media migration.
◪ Customized dimension are welcome.
Product Parameter
| Fiter Cartridge dimensions | |
| Length | 5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm) |
| Diameter | Ø25, 30, 50, 60, 65, 70mm |
| Other dimensions | Customized by customer’s request. |
| Material of constructions | |
| Filter media | SUS304, 316， 316L stainless steel |
| Connector type | Flat, Insert type, Thread type, Fin |
| End caps | DOE, SOE, 215, 222, 226, M20, M30, M42, 1’’ NPT/BSP or as request. |
| Outside protection net | Optional |
| Sealing material | Silicone, NBR, EPDM, Buna, Teflon, etc |
| Performance | |
| Removal rate | 1, 3, 5, 10,20, 30, 40, 50, 100um, etc |
| Effective Surface area | 0.65 sqm per 10" cartridge element |
| Operation Temperature | ≦ 480℃ |
| Cleaning method | back flushing, ultrasonic or other non-abrasive cleaning |
| Maximum Operating Pressure differential | 4.0 bar |
Product Details
Product Applications
Company Features
1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has been great. We make creating and manufacturing ss sintered filter efficient, consistent, affordable, and reliable.
2. We have accumulated many customers resources. They are mainly from America, Canada, Australia, Russia, and so on. By continually updating our technological ability, we are capable of solving their concerns and offering them advice.
3. The company culture Lvyuan sticks to is to make better qualified sintered metal filters suppliers and provide more professional service. Check now! If you have any questions or comments you can always call or email Guangzhou Lvyuan Water Purification Equipment Co., Ltd.. Check now! Providing high-end customer service makes great contribution to the development of Lvyuan. Check now! Guangzhou Lvyuan Water Purification Equipment Co., Ltd. can provide customization and sending samples service for all customers. Check now!
