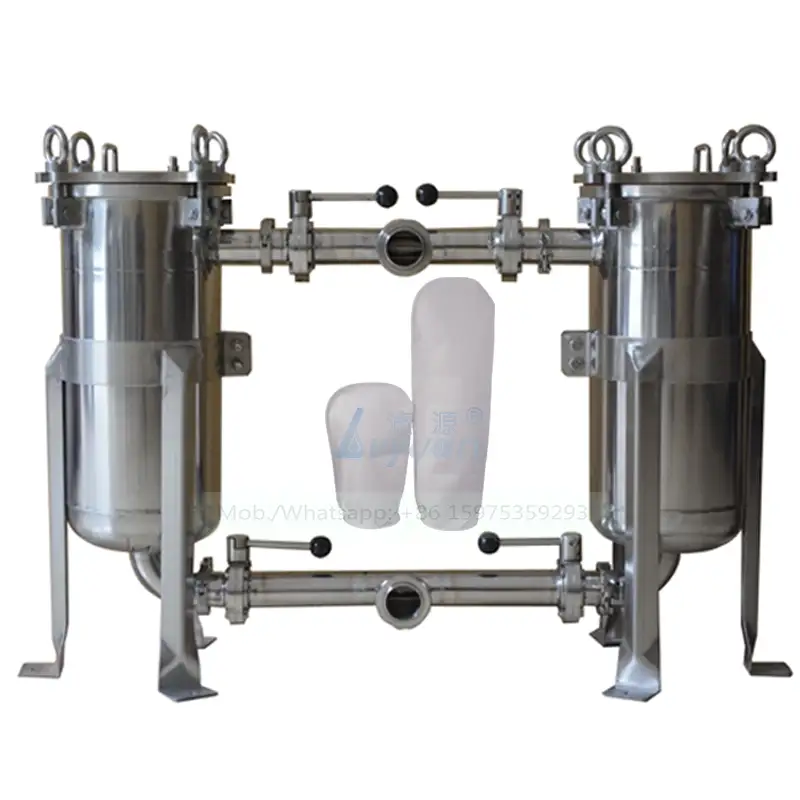

Top entry 2 inch stainless steel SS 304 316L washable PP bag filter duplex bag water filter system for water treatment plant

Top entry 2 inch stainless steel SS 304 316L washable PP bag filter duplex bag water filter system for water treatment plant

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Applicable Industries:
Machinery Repair Shops, Food & Beverage Factory, Food Shop, Energy & Mining, Food & Beverage Shops
Place of Origin:
Guangdong, China
Brand Name:
LVYUAN/OEM
Warranty:
1 Year
After-sales Service Provided:
Online support
Item Name:
SS 304 316L washable PP bag filter duplex bag water filter system
Material:
SS304 / SS316L
Filter bag material:
PE BAG/PP BAG
Bag filter quantity:
Single bag filter housing
Surface treatment:
Polished & Sandblast
Seal o-ring:
Silastic/NBR/EPDM/Viton
Top cap installed type:
Clamp type/Bolt type
Inlet & Outlet type:
Internal thread/Flange
Connector type:
222/226/DOE
Packaging method:
Export standard box

Packaging & Delivery

Selling Units:
Single item
Single package size:
145X45X45 cm
Single gross weight:
30.000 kg
Package Type:
Stainless steel SS 304 316L washable PP bag filter duplex bag water filter system for water treatment plant: Packaging: Export standard box/As required
Lead Time :
Quantity(Sets) 1 - 10 11 - 100 >100
Est. Time(days) 5 10 To be negotiated
Product Description

Top entry 2 inch stainless steel SS 304 316L washable PP bag filter duplex bag water filter system for water treatment plant:

LVYUAN stainless steel filter housing offers wide range of flow capacities & contaminant holding capacities. Cartridge filters are normally used as polishing filter in almost all process industries. Cartridge filter is constructed of filter housing, filter cartridges,tube sheet, positive sealing arrangement for cartridge depending upon type of cartridge & choice of end connections. Positive sealing arrangement for cartridge filter assures no particle migration or fiber migration, even after high differential pressures.

Product name
Top entry 2 inch stainless steel SS 304 316L washable PP bag filter duplex bag water filter system for water treatment plant
Raw material
SUS304, SUS316L
Inlet & Outlet
Flange/Thread
Seal material
EPDM/Silicone/Viton/PTFE
Surface treatment
Polished/Sandblast
Working temperature
50℉ to 250℉
Max. working temperature
100psi to 235psi
Bag Item
Flow rate
Filtration area (m²)
Length (mm)
Bag diameter (mm)
#1
20
0.25
410
180
#2
40
0.5
810
180
#3
6
1
210
102
#4
12
0.15
356
102
#5
25
0.3
870
175
FEATURE
1
Inlet & outlet size is 1/2", 3/4", 1 inch, easy installation.
2
Working pressure 8kg/0.8Mpa is supported.
3
Use the tap water pressure to provide power, no power consumption.
4
This is suitable for using in the water master switch, for the pre filtration system and RO system protection.
5
Resistance to strong acid and alkali.
6
Low cost, it fits different kind of filter elements.
Related Products

Model No.

Code

Bag size

In & Out
LY-BFH-01-B1

#1
180x450mm
1" & 2"
LY-BFH-01-B2

#2
180x810mm
1" & 2"
LY-BFH-01-B3
#3
105x210mm
1" & 2"
LY-BFH-01-B4
#4
105x345mm
1" & 2"

Model No.

Code

Bag size

In & Out
LY-BFH02-B1
#1
180x450mm
2" flange
LY-BFH02-B2
#2
180x810mm
2" flange
LY-BFH02-B3
#3
105x210mm
2" flange
LY-BFH02-B4
#4
105x345mm
2" flange

Model No.

Code

Bag size

In & Out


LY-BFH03-B1


#1


180x450mm


2" Flange


LY-BFH03-B1


#2


180x810mm


2" Flange
Application

1.It can be widely used in UF, RO, EDI security filtration and end- filtration, medicine injection, large infusion, eye drops,.
2. Chinese herbal medicine, such as liquid filtration, biological agents extraction, purification and concentration.
3. Electronics, semiconductor industry with high purity water preliminary filter, terminal filter.
4. Oil field back to water injection, boiler makeup water, chemical reagent, liquid organic products, high purity chemicals, strong medicine and other filtration.
5. Drinking pure water, mineral water, fruit juice, tea beverages, health drinks filtering.
6. Liquor, wine, beer, yellow wine and other fruit wine filtration, pure draft beer aseptic filtration (alternative pasteurized)
7. The life and production waste water treatment and water recycling process of pre-treatment filtering or security filtering.
8. Biological engineering, oil refining, printing and dyeing, textile industry water supply and waste water treatment, research and test filter, etc.

RO WATER TREATMENT

BOTTLED MINERAL WATER

BIOLOGY TECHNOLOGY

SEA WATER DESALINATION

CHEMICAL INDUSTRY

FOOD & BEVERAGE
