PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications. They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of
feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns. The high surface area ensures long service life and low initial pressure drops.
Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.

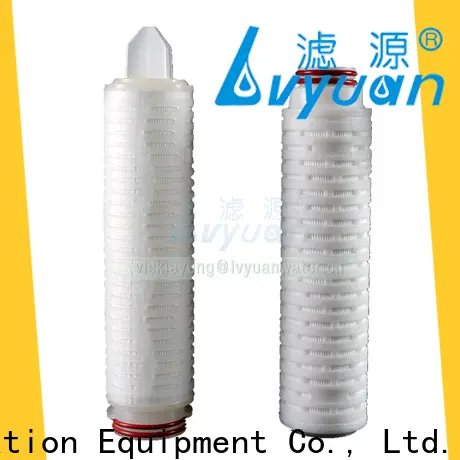

Lvyuan Low-cost pleated filter element for desalination
Company Advantages
1. The raw materials of Lvyuan are of high quality. It is sourced from top grade suppliers whose materials are in line with the quality standards. With a large number of tapered fixing holes inside, it has a high dirt holding capacity
2. This product can be used effectively for various application purposes. It can effectively control filtration precision
3. The product stands out for its stable operation. Since it is mainly controlled by microcomputers, it can run stably without any break. It has a large effective filter area
4. The product will never be out of shape. Its heavy-duty components and parts are perfectly designed to withstand extreme industrial conditions. It contains no binders, agents, solvents, antistatic materials or wetting agents
5. The product can work with high accuracy. Its distinguished self-diagnostic feature can make sure that every motion is of high accuracy. It is designed with graded pores to help trap contaminants throughout the entire cross section for improved efficiency
![Lvyuan Low-cost pleated filter element for desalination 6]()
Microporous folded pleated filter 5 10 micron PP sediment water filter element for 10/20/30/40 inch SS liquid filter
![Lvyuan Low-cost pleated filter element for desalination 8]()
![Lvyuan Low-cost pleated filter element for desalination 10]()
![Lvyuan Low-cost pleated filter element for desalination 12]()
![Lvyuan Low-cost pleated filter element for desalination 14]()
Nylon N66 pleated membrane filter cartridge
![Lvyuan Low-cost pleated filter element for desalination 16]()
![Lvyuan Low-cost pleated filter element for desalination 18]()
![Lvyuan Low-cost pleated filter element for desalination 20]()
![Lvyuan Low-cost pleated filter element for desalination 22]()
![Lvyuan Low-cost pleated filter element for desalination 24]()
![Lvyuan Low-cost pleated filter element for desalination 26]()
![Lvyuan Low-cost pleated filter element for desalination 28]()
![Lvyuan Low-cost pleated filter element for desalination 30]()
![Lvyuan Low-cost pleated filter element for desalination 32]()
![Lvyuan Low-cost pleated filter element for desalination 34]()
![Lvyuan Low-cost pleated filter element for desalination 36]()
![Lvyuan Low-cost pleated filter element for desalination 38]()
![Lvyuan Low-cost pleated filter element for desalination 40]()
![Lvyuan Low-cost pleated filter element for desalination 42]()
![Lvyuan Low-cost pleated filter element for desalination 44]()
![Lvyuan Low-cost pleated filter element for desalination 46]()
![Lvyuan Low-cost pleated filter element for desalination 48]()
![Lvyuan Low-cost pleated filter element for desalination 50]()
![Lvyuan Low-cost pleated filter element for desalination 52]()
![Lvyuan Low-cost pleated filter element for desalination 54]()
![Lvyuan Low-cost pleated filter element for desalination 56]()
Company Features
1. For so many years, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has been dedicated to the development, production, and marketing of pleated filter element in China. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has strong technical strength, production facilities, laboratory and testing facilities.
2. The solid technology foundation for Guangzhou Lvyuan Water Purification Equipment Co., Ltd. further consolidates the quality of stainless steel pleated filter cartridge .
3. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has strong technical force and advanced production equipment, and a sound quality management system. Our mission is to provide each customer with highest quality pleated membrane filter and most professional service. Get info!
1. The raw materials of Lvyuan are of high quality. It is sourced from top grade suppliers whose materials are in line with the quality standards. With a large number of tapered fixing holes inside, it has a high dirt holding capacity
2. This product can be used effectively for various application purposes. It can effectively control filtration precision
3. The product stands out for its stable operation. Since it is mainly controlled by microcomputers, it can run stably without any break. It has a large effective filter area
4. The product will never be out of shape. Its heavy-duty components and parts are perfectly designed to withstand extreme industrial conditions. It contains no binders, agents, solvents, antistatic materials or wetting agents
5. The product can work with high accuracy. Its distinguished self-diagnostic feature can make sure that every motion is of high accuracy. It is designed with graded pores to help trap contaminants throughout the entire cross section for improved efficiency
Microporous folded pleated filter 5 10 micron PP sediment water filter element for 10/20/30/40 inch SS liquid filter
Product Description
Microporous folded pleated filter 5 10 micron PP sediment water filter element for 10/20/30/40 inch SS liquid filter
Microporous pleated filter element, the main filter material is : Polypropylene, Hydrophobic PTFE, Hydrophilic PTFE,Polyether sulfone, Nylon, etc.
Most of the raw materials are imported from abroad.Pleated filter element is a kind of deep filtration filter,it is usuaslly used as liquid overheating,clarification, filtration and terminal filter.
It has the following characteristics: the superfine polypropylene fiber membrane as the filtration medium, low pressure differential, high flux, good filtration precision, lower economic cost.
The whole structure of polypropylene, end cover, housing and center pole adopts polypropylene material; It adopts the hot melt welding process, PP and PP melt bonding,without any binder.
It has wide range of chemical compatibility, and also has a series of pore size and form a variety of interface.Material: Pleated filter, Support layer, End-cover, Inside & Outside cylinder are polypropylene.
Welding: It adopts the uniquehot melting methods, no glue, no foreign body fall off.
Typical use: Pharmaceutical, Food, Chemical, Electronics, Environmental protection, etc.
Microporous membrane pleated filter cartridge main features: High interception rate, high liquidity, low pressure differential and a wide range of chemical compatibility;
The production process adopts unique hot melting process technology, no any adhesive, no foreign body release.
It can meet the food,beverage, beer, chemical, pharmaceutical and other industries production requirements.
Polypropylene microporous membrane filter
PTFE membrane pleated filter
Hydrophobic PTFE filter
The filter medium is Hydrophobic PTFE microporous membrane filter: Strong hydrophobicity,
High holding rate, excellent chemical resistance and thermal stability, good strength, impact resistance of the forward & reverse pressure.
Hydrophilic PTFE filter
The filter element medium for hydrphilic PTFE microporous membrane filter: The hydrophilic stability, high entrapment rate, excellent chemical resistance thermal stability, good strength, impact resistance of the forward & reverse pressure.
Polyether Sulphone PES Pleated Filter
The PES pleated filter cartridge is constructed of imported polyethersulfone(PES) membrane media and non-woven support materials.The material of cage core and end caps are polypropylene.Adapters are thermally welded with media without using any glue, no any pollution. The PES filter cartridge is ideally suited for critical prefiltration in sterilizing applications and final filtration in a broad range of demanding non-sterile application, the inherently hydrophilic membrane contains no surfactant or wetting agents, which results in good filtration and flow rates.
Nylon N66 pleated membrane filter cartridge
The filter medium is hydrophilic nylon microporous membrane filter, It is composed by nylon membrane and the polypropylene support material hot melting, it is no dung, also applicable for the strict chemical and pharmaceutical industries.
PVDF pleated cartridge filter
The PVDF pleated cartridge filter is constructed of imported natural hydrophobic polyvinylenedifluoride(PVDF) membrane media and non-woven support materials. The adaptors are thermally welded with media without using any glue, no any pollution.
High filtration microns, high flow rate, better hydrophobicity, sterilization at high temperature as well as chemical resistance. It is widely used in gas or liquid pre-filtration and widely used in final filtration.
Jumbo pleated membrane filter cartridge
The big jumbo pleated filter cartridge is constructed of deep polypropylene membrane, melt blown polypropylene, hydrophilic PES & PTFE. The non-woven support materials. This filter cartridges design increased the effective filtration area, not only can reduct the filter cartridges quantity, but also it can make the smaller housing size. Big flow rate and long service life, lower cost and human cost. The size is divided into 2 kinds of size: 83mm diameter & 131mm diameter. Adaptors are thermally welded with media without using any glue, no any pollution and droppings. Clean & stable, each filter cartridge has passed strict testing by 100% integrity.
Filtration media | PP/PTFE/PES/PVDF/Nylon | ||||
Support material | Polypropylene | ||||
Core & Structural components | Polypropylene | ||||
Inner core | PP/Stainless steel | ||||
Packing method | Polybag/Vacuum | ||||
Filtration precision | 0.1μm, 0.2μm, 0.45μm, 0.65μm,0.8μm,1μm,2μm,3μm,5μm,10μm,20μm,25μm,30μm,50μm | ||||
Length | 2.5", 5". 10", 20", 30", 40", 50", 60", OEM | ||||
Adaptor | 215/222/226/Fin/Flat/Thread/OEM | ||||
Sealing method | Hot melting welding | ||||
Sealing gasket & O-ring material | Silicone rubber; Nitrile butadiene rubber, EPDM, Fluorine rubber. | ||||
Effect filtration area | ≥0.6m² | ||||
Filter cartridge diameter | 69mm | ||||
Max. working temperature | PP: 88℃,0.27Mpa PTFE: 80℃, 0.173Mpa PES: 85℃, 0.28Mpa PVDF: 80℃, 0.173Mpa Nylon: 49℃, 0.21Mpa | ||||
Max. positive differential pressure | 0.42Mpa (25℃) | ||||
Max. back pressure differential pressure | 0.28Mpa (25℃) | ||||
Sterilization conditions | 121℃ 30min | ||||
Applications | Chemical industry; Organic solvents; Various of alcohols; Chemical reagents filtration; Sterile tank breathing apparatus; Pharmaceutical industry; Food industry; Electronic industry; RO water treatment; Medical liquid filtration; | ||||
Detailed Images
DOE opened pleated filter
The membrane's micron rating is optional. Options to order for this site include 0.03 to 0.45 microns in 10" to 40" length with either.
OEM customized size filter
Different length & variety end cap are optional.
Different end caps pleated filter
Double Open End (DOE), 222 or 226 end configurations, all come standard with EPDM/PTFE/SILICONE seals.
Application
RO WATER TREATMENT
BOTTLED MINERAL WATER
CHEMICAL TECHNOLOGY FILTRATION
BEER & BEVERAGE FILTRATION
PETROCHMICAL INDUSTRY
SEA DESALINATION WATER EQUIPMENT
Packing & Delivery
Container for shipment
Container for shipment
