The filtration media of PES micropore filter cartridge is hydrophilic PES (polyethersulfone) membrane. High porosity (about >=80%) and geometrically unique pores of the PES filter cartridge contribute to high outputs for difficult-to-filter solutions. It is contructed of 2 materials PES and PP to meet high standard of chemical and pharmaceutical industry. All filter cartridges are manufactured and assembled in a clean room environment. 100% of the cartridges are integrity tested and flushed with EDI pure water. It is suitable for filtering weak acid/alkali based liquid and ultra pure water.
Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.
pleated filter element with good price for desalination
Product Description

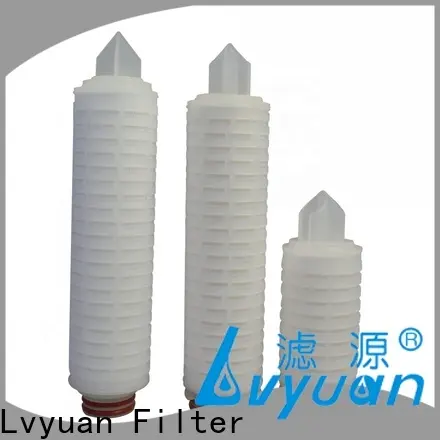

0.22 Micron Cartridge Pes Membrane Filter for Food and Beverage Filtration
Pleated membrane cartridge filters from Guangzhou Lvyuan Filter offer the ultimate in product safety and purity for absolute filtration with pore sizes from 0.05 to 100 micron (depending on the media). Available in membranes Polypropylene, PTFE, Polyethersulfone (PES), Nylon 66 and PVDF, Polyester for maximal chemical compatibility. We supply a wide selection of micron sizes and end cap configurations to choose from. Lvyuan pleated membrane filter cartridge are widely used for high purity, pre-filtration and final filtration applications.
PES Pleated Filter Cartridge
PP Pleated Filter Cartridge
The filtration media of PP micropore filter cartridge is super fine PP (Polypropylene) fibre membrane. It is a fixed and depth filter cartridge with a wide range of pore size from 0.1 micron to 50 micron, the materials comply with FDA related requirements. It is the first choice of pre-filtration due to its unique low differential pressure, high flow rate and long service life features. The structure of PP has stable performance and wide chemical compatibility.
PTFE Pleated Filter Cartridge
Hydrophobic PTFE series pleated filter cartridge is constructed of hydrophobic PTFE membrane which has excellent chemical compatibility and corrosion resistance. This filter cartridge is suitable for the filtration to liquid and gas with strongly aggressive and oxidative.
Hydrophilic PTFE series pleated filter cartridge is contructed of hydrophilic PTFE membrane which has excellent chemical compatibility and corrosion resistance. The membrane is hydrophilic which can filter liquid directly without pre-wetting to save the operation time.
Nylon Pleated Filter Cartridge
The filtration media of nylon micrpore filter cartridge is constructed of nylon 6 or nylon 66 media and nonwoven support materials. The adaptors are thermally welded without any glue or adhesive to prevent any possibility of pollution. The filters are produced in clean room and 100% integrity tested and flushed with ultrapure water.
Specification
Filter Media Option | PP | PES | PTFE | Nylon 6/66 | PVDF |
Length | 2.5'', 5, 10, 20, 30, 40 inch | 2.5'', 5, 10, 20, 30, 40 inch | 2.5'', 5, 10, 20, 30, 40 inch | 2.5'', 5, 10, 20, 30, 40 inch | 2.5'', 5, 10, 20, 30, 40 inch |
Micron Rate | 0.1, 0.2, 0.45, 0.65, 0.8, 1, 2, 3, 5, 10, 20, 25, 30, 50, 60 micron | 0.1, 0.2, 0.45, 0.65 micron | 0.2, 0.45 micron | 0.2, 0.45, 0.65, 1 micron | 0.2, 0.45 micron |
End Cap | DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat | DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat | DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat | DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat | DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat |
Inner Diameter | 28mm | 28mm | 28mm | 28mm | 28mm |
Outer Diameter | 69mm (can be customized) | 69mm (can be customized) | 69mm (can be customized) | 69mm (can be customized) | 69mm (can be customized) |
Gasket/O ring material | Silicon/EPDM/NBR/Viton/Teflon | Silicon/EPDM/NBR/Viton/Teflon | Silicon/EPDM/NBR/Viton/Teflon | Silicon/EPDM/NBR/Viton/Teflon | Silicon/EPDM/NBR/Viton/Teflon |
Effective filtration area | 0.4-0.7m² | ≥5m² | ≥0.72m² | ≥0.6m² | ≥0.72m² |
Max.working pressure difference | 0.42Mpa at 25ºC | 0.42Mpa at 25ºC | 0.42Mpa at 25ºC | 0.42Mpa at 25ºC | 0.42Mpa at 25ºC |
Max.back pressure | 0.28Mpa at 60ºC | 0.21Mpa at 25ºC | 0.35Mpa at 60ºC | 0.35Mpa at 25ºC | 0.21Mpa at 25ºC |
Max. working temperature | 88ºC at 0.28Mpa, 60ºC at 0.42Mpa | 140ºC at 0.28Mpa | 142ºC at 0.276Mpa | 49ºC at 0.21Mpa | 80ºC at 0.173Mpa |
Sterilizing temperature | 121℃, 30mins | 121℃, 30mins | 121℃, 30mins | 121℃, 30mins | 121℃, 30mins |
Application
1. Electronic industry: RO reverse osmosis water system prefiltration, deionized water system prefiltration.
2. Food industry: filtration of beverage, beer and mineral water.
3. Chemical industry: filtration of organic solvent and ink.
4. Pharmaceutical industry: filtration of pharmaceuticals, biologicals, serum products, compressed air and gas.
5. Others: filtration of plating solution, process fluids, photoresist and magnetic media
End Caps
DOE (double open end), code 0
222/Fin = code 7
226/Fin = code 8
222/Flat = code 3
226/Flat = code 6
215/Flat
222/Fin with stainless steel
222/Flat with stainless steel
226/Fin code 8
Screw type end cap
80mm outer diameter available
OEM dimension pleated filter cartridge
2.5'', 5'', mini size pleated filter cartridge, OEM
high flow pleated filter cartridge
Length can be customized
