Company Advantages1. pleated filter cartridge suppliers take precedence over other similar products with its pp pleated filter cartridge design. It can provide accurate analysis and results for sensitive ion chromatography applications
2. High quality, competitive price and the top level after-sale service are Guangzhou Lvyuan Water Purification Equipment Co., Ltd.'s business base. Its filter medium is customizable according to the different water quality in the application
3. This product has the advantage of the non-slip function. Its ergonomic design provides both grip and maximum friction on the surface. It is manufactured from 100% Polypropylene construction
4. This product is not easy to get a puncture. The hard wearing material can guarantee its toughness and wearing resistance. It features a high flow rate and stable filtering accuracy
PTFE membrane cartridge filter is constructed of imported natural
hydrophobic PTFE(Polytetrafluoroethylene) membrane and non-woven support materials. Adapters are thermally welded without the uses of glues or adhesives to prevent any possibility of pollution. These economical PTFE membrane cartridge filters provide superior hydrophobicity as compared to polypropylene filters commonly used in compressed air applications, making it ideally suited for utility as well as tank vent applications, without the higher costs of the typical PTFE filter.
Product Feature
◪ Excellent hydrophobic performance, the water erosion is more resistant than the common PVDF membrane.
◪ Withstand water shock, back pressure and repeated high temperature sterilization.
◪ 100% bacterial retention & effective filtration to 0.2 μm particle.
◪ 100% integrity tested.
◪ It is constructed of 2 kinds of hot welding materials(PTFE & PP), not any adhesives, clean & stable, meet the high standards of pharmaceutical industry.
Product Parameter

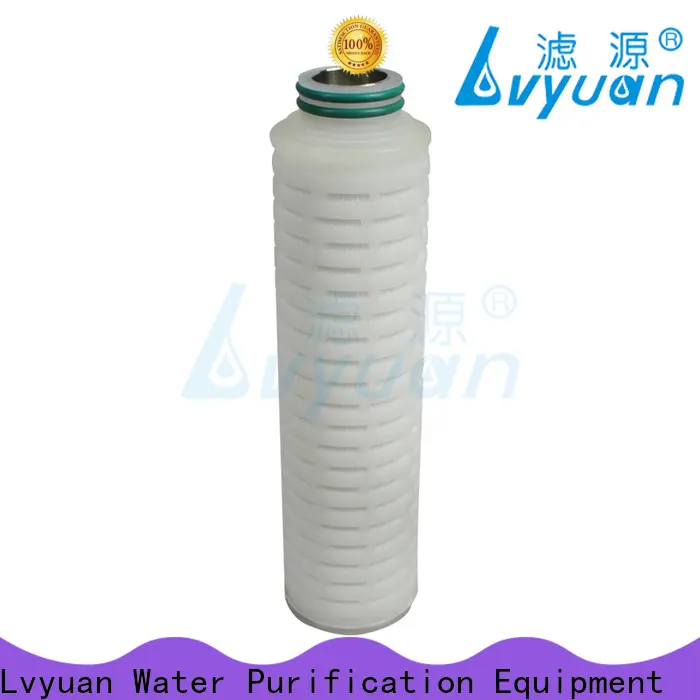

Product Name | 10 inch PTFE membrane pleated filter cartridge with stainless steel 222 |
Filter media | PTFE membrane |
Support | PP/Polypropylene |
Core/End cap | PP/Polypropylene |
Seal material | Silicone/EPDM/VITON/PTFE/NBR/TEFLON |
Outer diameter | 2.7‘’(69mm) |
Length | 9.75'', 10'', 20'', 30'', 40'', Customized |
End cap | 215/222/226/FIN/DOE/SS |
Filtration area | ≥0.72m² |
Max.operating temperature | 80℃, 0.173Mpa |
Micron rating(μm) | 0.2, 0.45 |
Product Details
part.1
It is constructed of 2 kinds of hot welding materials(PTFE & PP), no any adhesives,
clean & stable.
part.2
DOE double opened PTFE membrane filter with PTFE gasket. It is a good choice for the pharmaceutical and ohter strict applications.
part.3
The adapters are thermally welded without the uses of glues or adhesives to prevent any possibility of pollution.
part.4
Different length & variety end cap are optional.
Product Applications
Reverse osmosis water system prefiltration
Filtration of mineral water
Filtration of organic solvent & ink
Filtration of pharmaceuticals
Company Features1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is a leading company in pleated filter cartridge suppliers field in terms of market value. We only hire those who people who have a sense of integrity and honesty. Our employees insist on maintaining the highest standards in ethical conduct to be responsible for our clients.
2. Advanced facilities give us the ability to offer complete support throughout the lifecycle of each and every project, from the initial concept to the on-time delivery of the final product.
3. The expert R&D foundation has greatly improved pleated water filter cartridge . We will pursue an eco-friendly way throughout the business activities. We will make efforts to extend the product life cycle so as to reduce wastes and pollution.
