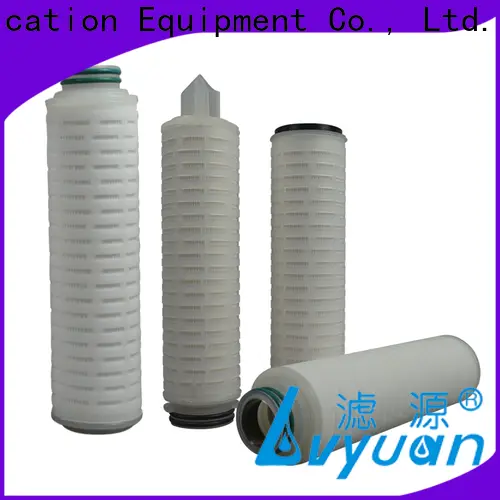

PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications. They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of
feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns. The high surface area ensures long service life and low initial pressure drops.
Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.
Lvyuan Newest pleated water filters factory for water Purifier
Company Advantages
1. Lvyuan pleated filter element meets the newest national and hardware industries quality standards in regards to its production workmanship as well as specification requirements. The star-shaped ring seal makes the filter element easy to disassemble and maintain
2. The product has helped Lvyuan establish a long-term cooperative relationship with a number of well-known enterprises. It contains no binders, agents, solvents, antistatic materials or wetting agents
3. The product features reliable endurance. It works around the clock to finish its given task. It only stops for needed maintenance or repair. It features a high flow rate and stable filtering accuracy
![Lvyuan Newest pleated water filters factory for water Purifier 6]()
![Lvyuan Newest pleated water filters factory for water Purifier 8]()
![Lvyuan Newest pleated water filters factory for water Purifier 10]()
![Lvyuan Newest pleated water filters factory for water Purifier 12]()
![Lvyuan Newest pleated water filters factory for water Purifier 14]()
Nylon N66 pleated membrane filter cartridge
![Lvyuan Newest pleated water filters factory for water Purifier 16]()
![Lvyuan Newest pleated water filters factory for water Purifier 18]()
![Lvyuan Newest pleated water filters factory for water Purifier 20]()
![Lvyuan Newest pleated water filters factory for water Purifier 22]()
![Lvyuan Newest pleated water filters factory for water Purifier 24]()
![Lvyuan Newest pleated water filters factory for water Purifier 26]()
![Lvyuan Newest pleated water filters factory for water Purifier 28]()
![Lvyuan Newest pleated water filters factory for water Purifier 30]()
![Lvyuan Newest pleated water filters factory for water Purifier 32]()
![Lvyuan Newest pleated water filters factory for water Purifier 34]()
![Lvyuan Newest pleated water filters factory for water Purifier 36]()
![Lvyuan Newest pleated water filters factory for water Purifier 38]()
![Lvyuan Newest pleated water filters factory for water Purifier 40]()
![Lvyuan Newest pleated water filters factory for water Purifier 42]()
![Lvyuan Newest pleated water filters factory for water Purifier 44]()
![Lvyuan Newest pleated water filters factory for water Purifier 46]()
![Lvyuan Newest pleated water filters factory for water Purifier 48]()
![Lvyuan Newest pleated water filters factory for water Purifier 50]()
![Lvyuan Newest pleated water filters factory for water Purifier 52]()
![Lvyuan Newest pleated water filters factory for water Purifier 54]()
Company Features
1. The factory has established a complete and scientific international quality management system. This means all of the production processes are conducted according to international standards to ensure quality advantages.
2. We take environmental protection seriously. During the production stages, we are making great efforts to reduce our emission including greenhouse gas emissions and handle wastewater properly.
1. Lvyuan pleated filter element meets the newest national and hardware industries quality standards in regards to its production workmanship as well as specification requirements. The star-shaped ring seal makes the filter element easy to disassemble and maintain
2. The product has helped Lvyuan establish a long-term cooperative relationship with a number of well-known enterprises. It contains no binders, agents, solvents, antistatic materials or wetting agents
3. The product features reliable endurance. It works around the clock to finish its given task. It only stops for needed maintenance or repair. It features a high flow rate and stable filtering accuracy
Chinese high quality pleated fibre felt filter cartridge Custom size
Product Description
Product Name | 10 inch SOE 222 1 micron PP/Polypropylene pleated sediment water filters for wine liquid filtration | ||||
Filtration media | PP/PTFE/PES/PVDF/Nylon | ||||
Support material | Polypropylene | ||||
Core & Structural components | Polypropylene | ||||
Inner core | PP/Stainless steel | ||||
Packing method | Polybag/Vacuum | ||||
Filtration precision | 0.1μm, 0.2μm, 0.45μm, 0.65μm,0.8μm,1μm,2μm,3μm,5μm,10μm,20μm,25μm,30μm,50μm | ||||
Length | 2.5", 5". 10", 20", 30", 40", 50", 60", OEM | ||||
Adaptor | 215/222/226/Fin/Flat/Thread/OEM | ||||
Sealing method | Hot melting welding | ||||
Sealing gasket & O-ring material | Silicone rubber; Nitrile butadiene rubber, EPDM, Fluorine rubber. | ||||
Effect filtration area | ≥0.6m² | ||||
Filter cartridge diameter | 69mm | ||||
Max. working temperature | PP: 88℃,0.27Mpa；PTFE: 80℃, 0.173Mpa；PES: 85℃, 0.28Mpa PVDF: 80℃, 0.173Mpa；Nylon: 49℃, 0.21Mpa | ||||
Max. positive differential pressure | 0.42Mpa (25℃) | ||||
Max. back pressure differential pressure | 0.28Mpa (25℃) | ||||
Sterilization conditions | 121℃ 30min | ||||
Applications | Chemical industry; Organic solvents; Various of alcohols; Chemical reagents filtration; Sterile tank breathing apparatus; Pharmaceutical industry; Food industry; Electronic industry; RO water treatment; Medical liquid filtration; | ||||
Polypropylene microporous membrane filter
PTFE membrane pleated filter
Hydrophobic PTFE filter
The filter medium is Hydrophobic PTFE microporous membrane filter: Strong hydrophobicity,
High holding rate, excellent chemical resistance and thermal stability, good strength, impact resistance of the forward & reverse pressure.
Hydrophilic PTFE filter
The filter element medium for hydrphilic PTFE microporous membrane filter: The hydrophilic stability, high entrapment rate, excellent chemical resistance thermal stability, good strength, impact resistance of the forward & reverse pressure.
Polyether Sulphone PES Pleated Filter
The PES pleated filter cartridge is constructed of imported polyethersulfone(PES) membrane media and non-woven support materials.The material of cage core and end caps are polypropylene.Adapters are thermally welded with media without using any glue, no any pollution. The PES filter cartridge is ideally suited for critical prefiltration in sterilizing applications and final filtration in a broad range of demanding non-sterile application, the inherently hydrophilic membrane contains no surfactant or wetting agents, which results in good filtration and flow rates.
Nylon N66 pleated membrane filter cartridge
The filter medium is hydrophilic nylon microporous membrane filter, It is composed by nylon membrane and the polypropylene support material hot melting, it is no dung, also applicable for the strict chemical and pharmaceutical industries.
PVDF pleated cartridge filter
The PVDF pleated cartridge filter is constructed of imported natural hydrophobic polyvinylenedifluoride(PVDF) membrane media and non-woven support materials. The adaptors are thermally welded with media without using any glue, no any pollution.
High filtration microns, high flow rate, better hydrophobicity, sterilization at high temperature as well as chemical resistance. It is widely used in gas or liquid pre-filtration and widely used in final filtration.
Jumbo pleated membrane filter cartridge
The big jumbo pleated filter cartridge is constructed of deep polypropylene membrane, melt blown polypropylene, hydrophilic PES & PTFE. The non-woven support materials. This filter cartridges design increased the effective filtration area, not only can reduct the filter cartridges quantity, but also it can make the smaller housing size. Big flow rate and long service life, lower cost and human cost. The size is divided into 2 kinds of size: 83mm diameter & 131mm diameter. Adaptors are thermally welded with media without using any glue, no any pollution and droppings. Clean & stable, each filter cartridge has passed strict testing by 100% integrity.
Detailed Images
DOE opened pleated filter
The membrane's micron rating is optional. Options to order for this site include 0.03 to 0.45 microns in 10" to 40" length with either.
OEM customized size filter
Different length & variety end cap are optional.
Different end caps pleated filter
SDouble Open End (DOE), 222 or 226 end configurations, all come standard with EPDM/PTFE/SILICONE/TEFLON seals.
Application
RO WATER TREATMENT
BOTTLED MINERAL WATER
CHEMICAL TECHNOLOGY FILTRATION
BEER & BEVERAGE FILTRATION
PETROCHMICAL INDUSTRY
SEA DESALINATION WATER EQUIPMENT
Packing & Delivery
Container for shipment
Container for shipment
Certifications
Our Company
With the growing demand of water filter cartridges, Lvyuan now has been more concentrated on the service quality. Customized end cap configurations are available to fit specific requirements
Distributors and suppliers are part of Guangzhou Lvyuan Water Purification Equipment Co., Ltd.'s value chain. Customized end cap configurations are available to fit specific requirements
Company Features
1. The factory has established a complete and scientific international quality management system. This means all of the production processes are conducted according to international standards to ensure quality advantages.
2. We take environmental protection seriously. During the production stages, we are making great efforts to reduce our emission including greenhouse gas emissions and handle wastewater properly.
