Lvyuan pes pleated filter element manufacturer for food and beverage
-
v s
1. The appealing design of Lvyuan 20 micron pleated water filter allows customers to enjoy the aesthetics.
2. The quality of the products can stand the test of time.
3. Through years of development in pleated filter element industry, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. have a certain degree of industry competitiveness.
4. Our 20 micron pleated water filter and high efficiency pleated filters have kept us ahead of our competitors in the industry.

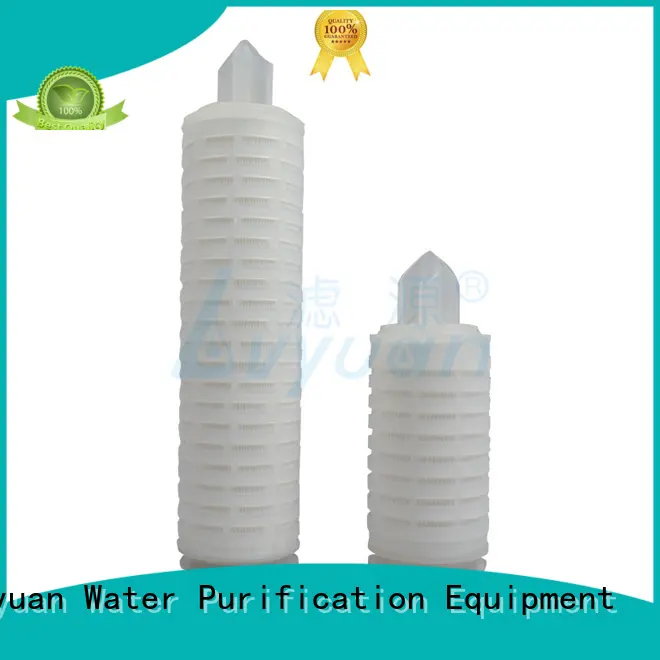

PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications.
They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns.
The high surface area ensures long service life and low initial pressure drops. All cartridges hardware components are made from high purity polypropylene materials for use in critical process application. All the Cartridges are manufactured and assembled in a clean room environment to minimized the possibility of contamination.
This type of cartridges are available in a wide range of configurations to fit most commercially available filter housings.
Product Feature
◪ Excellent chemical compatibility. Suitable for filtering organic solvents, acid bases.
◪ The multi layers PP membrane structure enables a graded filtration pore sizes and increases the dirt-holding capacity of the PP pleated water cartridge filters.
◪ Large flow volume, low differential pressure and long service life.
◪ Hydrophilic membrane with high flow.
◪ Pleated design increased the filtration area for deep filtration.
◪ Application of thermal-bonding technique, strong and no any pollution.
◪ Full rage of removal microns ratings.
◪ Graded pore density for high dirt holding capacity.
◪ Common use in clean and sterilize with cabinet & steam with high pressure.
Product Parameter
| Filter media | PP/Polypropylene |
| Support | PP/Polypropylene |
| Core/End cap | PP/Polypropylene |
| Seal material | Silicone/EPDM/NBR/Viton/Teflon |
| Outer diameter | 2.7'' , customized |
| Length | 9.75'', 10'', 20'', 30'', 40'' customized |
| End cap | DOE, 215, 222, 226, FIN, FLAT, Stainless steel, or customized. |
| Filtration area | 0.4-0.7m² (10'') |
| Max.operating temperature | 88℃, 0.28Mpa. 60℃, 0.42Mpa. |
| Micron rating(μm) | 0.1, 0.2, 0.45, 0.65, 1, 2, 3, 5, 10, 20, 25, 30, 50, 60 |
Product Details
Product Applications
Reverse osmosis water system prefiltration
Company Features
1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is the main developer and supplier of pleated filter element .
2. In Guangzhou Lvyuan Water Purification Equipment Co., Ltd., the production technology for pleated filter manufacturers is at the leading position in China.
3. 20 micron pleated water filter tenet and high efficiency pleated filters brand strategy constitute the core competitiveness of Guangzhou Lvyuan Water Purification Equipment Co., Ltd.. Call! With the company spirit of pleated filter sizes, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. practices the mission of creating value for costumers. Call!
