Lvyuan professional sintered filter suppliers rod for food and beverage
1. The design of Lvyuan ss sintered filter involves many considerations. They may include stress points, support points, yield points, wear resistance capacity, toughness, and friction force. It has increased dirt holding capacity and longer life
2. By years of accumulation, Lvyuan has established perfect quality assurance and managing system to assure sintered filter suppliers 's quality. It comes with a wide range of lengths for standard and full-flow housings
3. With the installation of ss sintered filter, sintered filter suppliers have increased its sales. Customized end cap configurations are available to fit specific requirements
4. sintered filter suppliers , using ss sintered filter, is especially suitable for sintered steel filter . It can also filter particulates, microbial organisms, ferric oxide, and other impurities

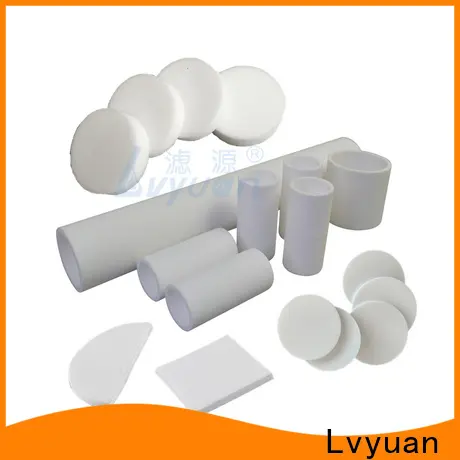

◆◆ Lvyuan sintered porous platics filters can meet requirements of different customers. Custom molded Shapes are available.
PE and HDPE Sintered filter cartridge：
Sintered Porous Polyethylene (PE) products are the most commonly used plastic filter element in the world. Porous PE plastics is strong, lightweight thermoplastic with strong chemical (acids and alkali) resistance and wide micron rates from 1 to 200um. There’re Ultra-high molecular weight Polyethylene (UHMWPE) and High-density Polyethylene (HDPE) available in tubes, sheets, rods and molded shapes available for different applications.
PTFE Sintered filter cartridge:
Micro Porous PTFE filter elements are produced by sintering pure PTFE (Polytetrafluoroethylene) granules, no other substances are used in the construction. These filter elements are usually offered when only 100% pure disposable PTFE can be used. The advantage of PTFE is a higher maximum temperature, up to 200℃, and somewhat better chemical resistance. These filter elements should be ultrasonically cleaned to give best results.
PVDF Sintered filter cartridge:
Sintered porous PVDF (Polyvinylidene fluoride) products are good choices when expose to harsh thermal, ultraviolet, ozone and chemical conditions. Porous PVDF prdoucts is extreme hard and with average pore size of 25 micron. It can work in temperature from -62 to 149℃.
PA/Nylon Sintered filter cartridge:
Nylon, trade name for polyamides (PA), is a semi-crystaline polymer that contains amine and carbonyl groups. There’re numerous versions. Nylon/PA has high strength and thermal resistance with a softening termperature of 190℃. Working temperature from -40℃ to 121℃, sintered PA/Nylon porous products have very high tensile strength, good abrasion and chemical resistance, and low coefficient of friction.
Product Feature
◪ High porosity (60%) to ensure a greater flow per unit area;
◪ Smooth outer surface, impurities are not easy adhesion, back washing easy and thorough;
◪ Anti-fouling ability: the small size of the filter so that impurities can’t be retained in the filter body;
◪ Resistance to strong acid, alkali corrosion, resistance to organic solvents;
◪ Excellent mechanical properties;
◪ No particle release.
◪ Product range and wide scope of application
Product Parameter
| Fiter Cartridge dimensions | |
| Regular size (mm) | 31x12x1000, 31x20x1000, 38x20x1000, 38x18x1000, 38x20x1200, 38x20x1300, 38x20x150, 38x20x400, 38x20x250, 38x20x200, 38x20x180, 38x20x150, 50x20x1000, 50x31x1000, 50x38x1000, 65x31x1000, 65x38x1000, 64x44x1000, 78x62x750mm, etc. |
| Other dimensions | Customized by customer’s request. |
| Material of constructions | |
| Filter media option | PE, HDPE, PTFE, PVDF, PA/Nylon etc |
| Connector type | Flat, Insert type, Thread type, Fin |
| End caps | PP, M36, M30, M25, M22, M14, M12, or as request. |
| Performance | |
| Removal rate | 0.3, 0.45, 1, 3, 5, 10,20, 30, 40, 50 μm |
| Maximum Operating Temperature | ≦ 82 ℃ |
| Maximum Operating Pressure | 6.0bar |
Product Details
Product Applications
Company Features
1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has become the largest production base for sintered filter suppliers in Pearl River Delta. We have a factory with a strong production capacity. It allows us to produce a large number of different batches of products according to demand.
2. We have embraced a team of professionals. They have been well-trained and are highly specialized in this field. Their outstanding qualifications and years of experience have enabled them to offer better service to clients.
3. We have established our own quality management system. Under the requirements of this system, we place various inspection points throughout all the production procedures to ensure all products are being made according to stipulated standards. With the support of our professionals, Lvyuan has enough confidence to make sintered metal filter . Call now!
