Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.

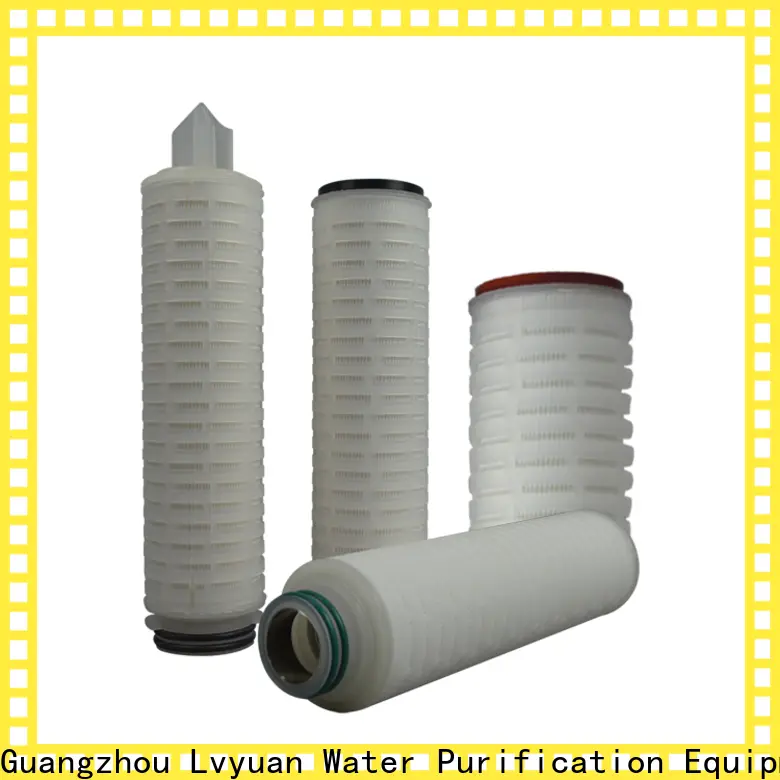

Lvyuan ptfe pleated filter element supplier for liquids sterile filtration 1

Lvyuan ptfe pleated filter element supplier for liquids sterile filtration 2

Lvyuan ptfe pleated filter element supplier for liquids sterile filtration

Start Port:

Guangzhou

Production Capacity:

10000 units/Month

Place of Origin:

Guangdong, China

Payment:

T/T, Alibaba Trade Assurance, paypal

Model:

LY-HFPL

Delivery Time:

Within 7 working days

Certification:

ISO 9001

Brand:

OEM/Lvyuan

Inquiry

Material

Availability

OEM

Natural Hydrophobic PTFE air vent filters Cartridge for Air/Gas

The filtration media of Polytetrafluoroethylene cartridge is hydrophobic PTFE membrane.
Polyflo cartridgee bears excellent operation features, and its safety and thermal control specifications conform to the requirements of USP of the USA. Each polyflo cartridge has passed 100% integrity testing of bubble point and expanison flow so as to ensure to reach the bacterial retention requirements of USA HIME.

Specification

Filter Media Option	PP filter cartridge	PTFE filter cartridge	Nylon 6 filter cartridge	PES filter cartridge	PVDF filter cartridge
Length	5, 10, 20, 30, 40	5, 10, 20, 30, 40	5, 10, 20, 30, 40	5, 10, 20, 30, 40	5, 10, 20, 30, 40"
Micron Rate	0.1, 0.2, 0.45, 0.65, 0.8, 1, 2, 3, 5, 10, 20, 25, 30, 50, 60 micron	0.2, 0.45 micron	0.2, 0.45, 0.65, 1 micron	0.1, 0.2, 0.45, 0.65 micron	0.2, 0.45 micron
End Cap	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
Inner Diameter	28mm	28mm	28mm	28mm	28mm
Outer Diameter	68mm (can be customized)	68mm (can be customized)	68mm (can be customized)	68mm (can be customized)	68mm (can be customized)
Jumbo Size	ID: 30mm, OD: 110~115mm	ID: 30mm, OD: 110~115mm	ID: 30mm, OD: 110~115mm	ID: 30mm, OD: 110~115mm	ID: 30mm, OD: 110~115mm
Gasket/O ring material	Silicon/EPDM/NBR/Viton/Teflon	Silicon/EPDM/NBR/Viton/Teflon	Silicon/EPDM/NBR/Viton/Teflon	Silicon/EPDM/NBR/Viton/Teflon	Silicon/EPDM/NBR/Viton/Teflon
Effective filtration area	0.4-0.7m²	≥0.72m²	≥0.6m²	≥5m²	≥0.72m²
Max.working pressure difference	0.42Mpa at 25℃	0.42Mpa at 25℃	0.42Mpa at 25℃	0.42Mpa at 25℃	0.42Mpa at 25℃
Max.back pressure	0.28Mpa at 60℃	0.35Mpa at 60℃	0.35Mpa at 25℃	0.21Mpa at 25℃	0.21Mpa at 25℃
Max. working temperature	88℃ at 0.28Mpa, 60℃ at 0.42Mpa	142℃ at 0.276Mpa	49℃ at 0.21Mpa	140℃ at 0.28Mpa	80℃ at 0.173Mpa
Sterilizing temperature	121℃, 30mins	121℃, 30mins	121℃, 30mins	121℃, 30mins	121℃, 30mins

Main Features:

1. Inherently hydrophobic more resistant to water intrision than commonly used PVDF membrane.
2. Withstand shocks, back pressures and repeated sterilizations.
3. 100% bacterial retention and effective filtration to 0.02um pastical (in gas).

4. constructed of two materials PTFE and PP to meet high standards of pharmaceutical industry.

Lvyuan ptfe pleated filter element supplier for liquids sterile filtration 3

Why choose us

Guangzhou Lvyuan Water Purification Equipment Co.,Ltd is a comprehensive enterprise. As a Leader Manufacturer in Guangzhou city, our competitive product lines including:
1. All kinds of Filter Cartridges, Pleated / Melt Blown / Sintered etc.
2. Cartridge filter housings and bag filter housings
3. RO, UF, MBR water purifier and equipment
4. Water treatment equipments
5. Many kinds of Water purifiers and equipments, water softners, and more.
We devote to filtration development for more than 10 years. We can supply advanced technical support and solution for all of our customers during and after warranty period.

FAQ

1. Q: Are you factory?
A: Yes, we are the professional manufacturer with continuous and improved R & A production, sales and service supply. We will always provide the best technical service support to our clients both in and after warranty period.
2. Q: How to get a quotation?
A: In order to send you our best price, please kindly inform us detail product parameters and order quantity.
3. Q: Can I get your products with our logo and design?
A: Customized service is available. We can OEM or ODM with your logo.
4. Q: What's the MOQ ?
A: We can offer the quantity you required, as we don't dictate MOQ terms.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
