Lvyuan sintered cartridge filter replace for sea water
1. The design of Lvyuan activated carbon block filter cartridge adopts various technologies. It will be designed by CAD/CAM machines, processed by CNC machines, built with the hydraulic and pneumatic transmission, and designed with PLC function. The graded gradient design helps it to avoid rapid clogging
2. This product can save time and labor. It works faster than men. Thus it will increase the productivity of labor and hence production. It is manufactured from 100% Polypropylene construction
3. sintered cartridge filter is widely loved by customers and dealers. It is designed with graded pores to help trap contaminants throughout the entire cross section for improved efficiency

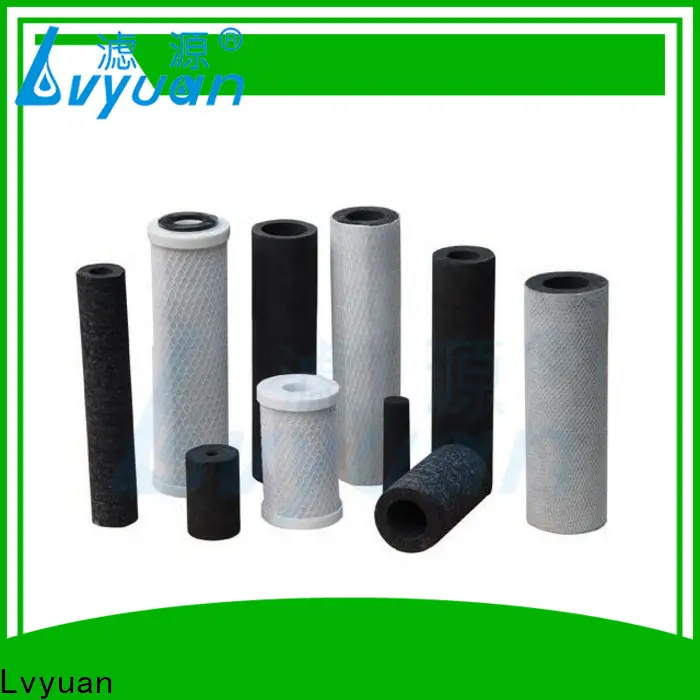

10 20 inch Slim Jumbo ACF Activated Carbon Fiber Cartridge for Water Purifier Filtration
10 20 inch Slim Jumbo ACF Activated Carbon Fiber Filter Cartridge for Water Purifier Filtration
LVYUAN can custom-make industry-standard sized sintered carbon blocks Filter Element to suit the requirements of OEMs worldwide.
LVYUAN activated carbon fiber filter cartridge is combined with the performance of depth filtration with the absorption of activated carbon fine. More than 80% of the carbon atoms of the carbon fiber filter are locatedd on the inner and outer surfaces, and they form a unique adsorption structure, which is called a surface solid. The outside deep filter media can remove particles while the activated carbon held within the filter cloth absorb the smell, odor, sediment, pigment, VOC, and organic chemicals. The inside fiber filter prevents carbon particles and fine pollutants form passing through, thus increasing an efficient quality and integrated filtration.
Name | Activated Carbon Fiber Filter Cartridge |
Filter Media | Activated carbon, (other anti-scale, heavy metal removal material available for option.) |
Material | Coconut shell, Coal carbo |
Iodine value | 600 to 1500 available |
Filtration rate | 1um, 3um, 5um, 10um, 20um, 30um, 50um, 80um, 100um, 120um. |
Dimension | can be custom-made according to customer's requirement |
Length | 5, 10, 20, 30, 40 inch, OEM |
Outer diameter | 50, 60, 70, 80mm, OEM |
End cap | DOE, M20, M30,M36, M42, 215, 222, 226, OEM |
Gasket/Oring material | Silicone, EPDM, NBR, Viton etc |
Netting material | Polypropylene |
Operating temperature | ≤60ºC |
Maximum operating pressure | 10 bar |
1. High dirt holding capacity, longer service life.
2. Filtration & adsorption integrated.
3. Strong adsorption capacity, longer service life.
4. Fits to all the standard filter housings.
5. Chlorine, color, odor, organic matter removal.
1. RO water pre-treatment in municipal tap water.
2. Pre filtration for drinking water filter
3. Solution to remove oil and aromatic.
4. Removing dissociative chlorine and volatile organics compounds (VOS) in solution.
5. Industry water, plating filtration.
6. Food and Beverage.
7. Remove smell, odor, color and organic pigment.
8. Organic chemical removal.
Company Features
1. With such industry elites, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has established a well-trained team and comprehensive procedures to manufacture sintered cartridge filter with demanding standards.
2. Our factory is one of the top manufacturers of sintered filter cartridge .
3. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. will strive to enhance its competitive advantage through continuous innovation on sintered plastic filter. Get price!
