ptfe pleated filter element with stainless steel for diagnostics
1. Lvyuan pleated filter element goes through careful designing. This process starts with a firm idea about the color story, fabric story, silhouette, details, pattern, and texture. The inner support layer is closely connected to the filter material, making it of strong impact resistance
2. The use of this product is money-saving. Without the need for maintenance, it also contributes a lot in cutting electricity bills. Its filter medium is customizable according to the different water quality in the application
3. The product features a high-gloss finish. Thanks to the RTM process technology which provides smooth on both sides, it has enough attractiveness. Its unique density gradient construction maximizes efficiency and minimizes pressure drop
4. The product features dimensional accuracy. It is finely processed by advanced CNC cutting and drilling machines which features highly precise. It can also filter particulates, microbial organisms, ferric oxide, and other impurities

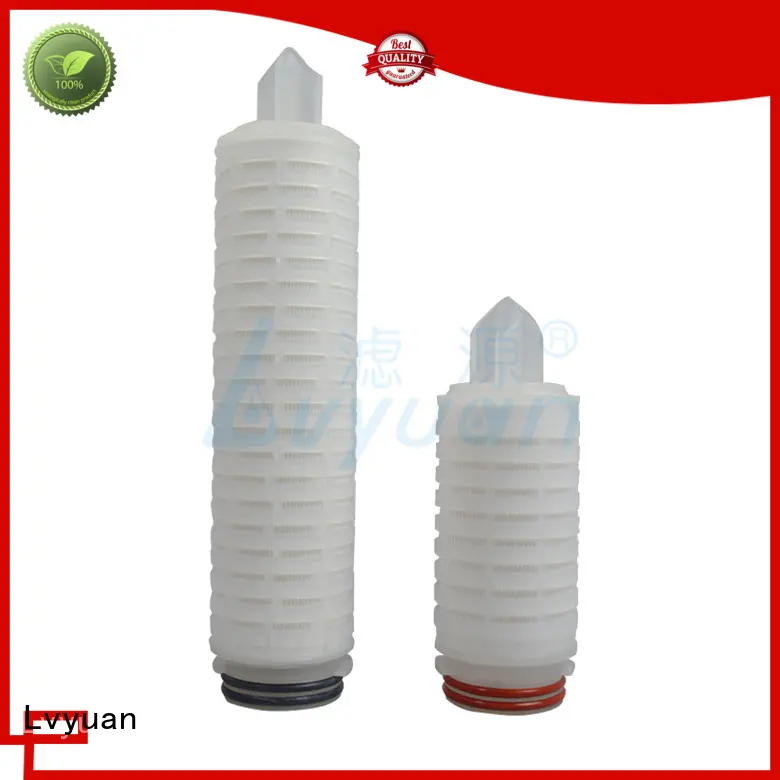

PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications.
They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns.
The high surface area ensures long service life and low initial pressure drops. All cartridges hardware components are made from high purity polypropylene materials for use in critical process application. All the Cartridges are manufactured and assembled in a clean room environment to minimized the possibility of contamination.
This type of cartridges are available in a wide range of configurations to fit most commercially available filter housings.
Product Feature
◪ Excellent chemical compatibility. Suitable for filtering organic solvents, acid bases.
◪ The multi layers PP membrane structure enables a graded filtration pore sizes and increases the dirt-holding capacity of the PP pleated water cartridge filters.
◪ Large flow volume, low differential pressure and long service life.
◪ Hydrophilic membrane with high flow.
◪ Pleated design increased the filtration area for deep filtration.
◪ Application of thermal-bonding technique, strong and no any pollution.
◪ Full rage of removal microns ratings.
◪ Graded pore density for high dirt holding capacity.
◪ Common use in clean and sterilize with cabinet & steam with high pressure.
Product Parameter
| Filter media | PP/Polypropylene |
| Support | PP/Polypropylene |
| Core/End cap | PP/Polypropylene |
| Seal material | Silicone/EPDM/NBR/Viton/Teflon |
| Outer diameter | 2.7'' , customized |
| Length | 9.75'', 10'', 20'', 30'', 40'' customized |
| End cap | DOE, 215, 222, 226, FIN, FLAT, Stainless steel, or customized. |
| Filtration area | 0.4-0.7m² (10'') |
| Max.operating temperature | 88℃, 0.28Mpa. 60℃, 0.42Mpa. |
| Micron rating(μm) | 0.1, 0.2, 0.45, 0.65, 1, 2, 3, 5, 10, 20, 25, 30, 50, 60 |
Product Details
Product Applications
Reverse osmosis water system prefiltration
Company Features
1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is a professional China-based manufacturer. Additional recognition has gained from national and international competitors due to our ability in manufacturing pleated polypropylene filter cartridge . Our manufacturing team consists of experienced specialists. With their years of expertise and great sensitivity, they can produce high-quality products both standard and custom.
2. Our business is growing owing to our highly dedicated project management team. Their years of expertise ensure that our products can be delivered to our customers at the right time and right manner.
3. We have a team of members responsible for product quality. They have years of record for maintaining high standards of excellence in product quality and are able to meet the requirements of our customers. In providing pp pleated filter cartridge , we never neglect the importance of service and quality. Please contact us!
